100,000 BTUs / 100 PSI

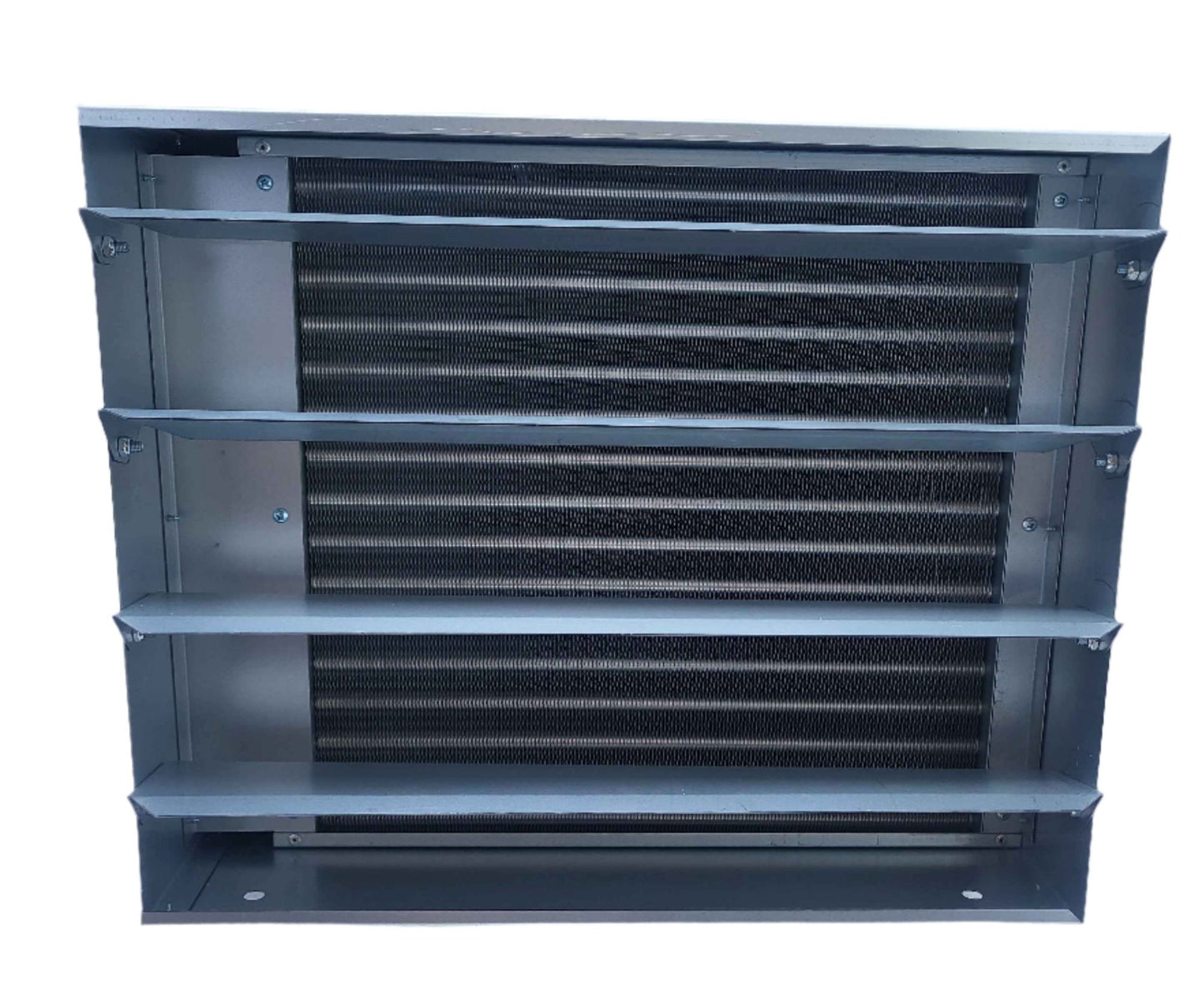

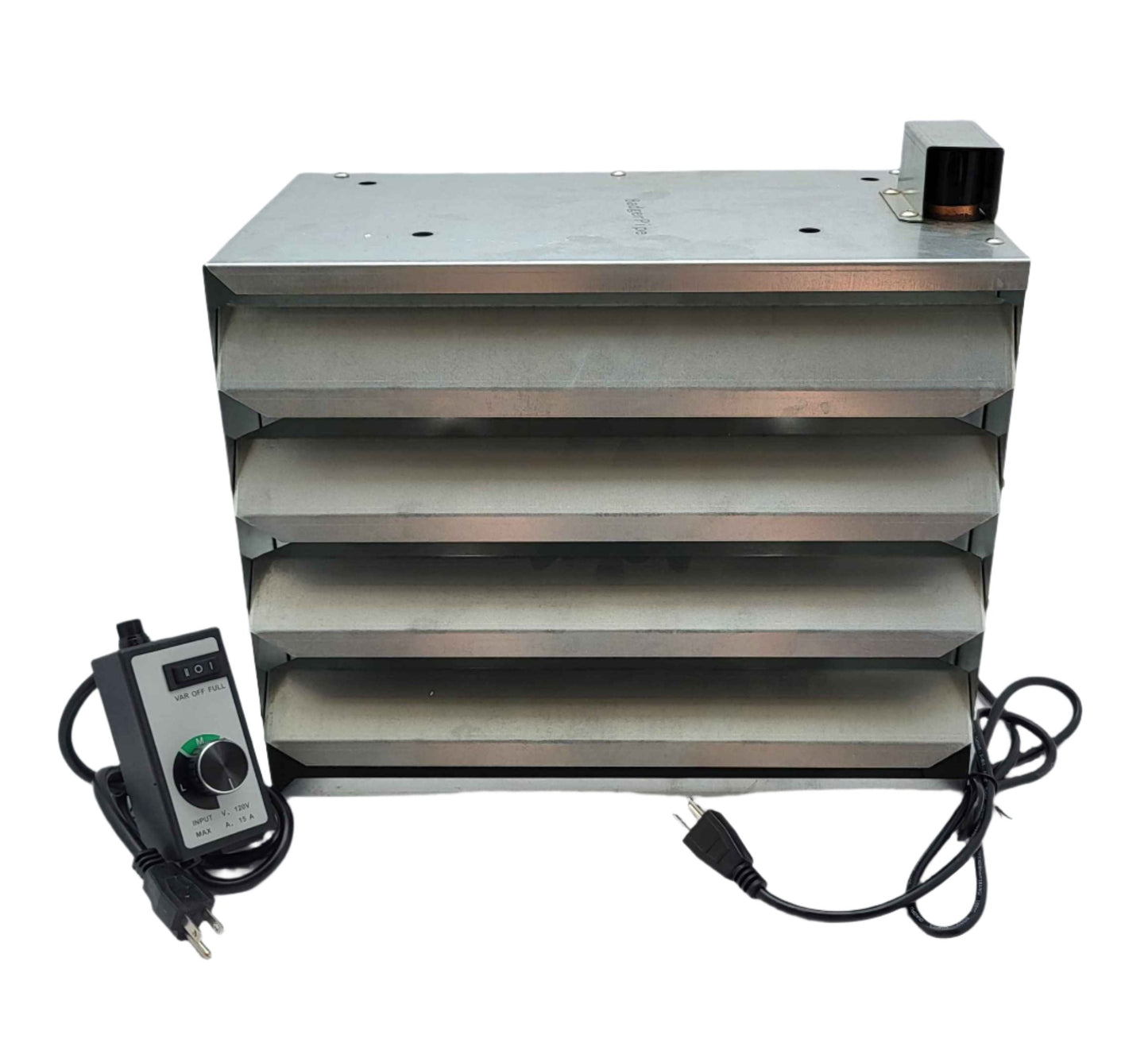

Hanging unit heater for garages, warehouses, greenhouses, ect. Hangs from ceiling and uses hot water to heat your dwelling. Other Sizes available. Units plug directly into a wall outlet, and comes with Rheostat! Does NOT come with the mounting rods to hang from ceiling.  DOES NOT INCLUDE THERMOSTAT WITH THIS UNIT.

The inlet/outlet ports are the same no matter which one you choose for hot or cold.

 The fan speed on this unit is controlled with a Rheostat.

These heat exchangers are to be hooked up to a boiler or a chilled water source. If using as a chilled water source, a drip pan will need to be provided by owner.

BP-100

 Dimensions:

 Width = 19 ¾”

 Height = 16”

 Outlet Port: 1"

Depth  = 14” including fan

 Weight = 34 lbs – Shipping Weight = 43 lbs.

 CFM= 1,000

Rheostat Specs:

*Current Capacity: 15 amps

*Voltage Capacity: 120 AC

*Fuse: 15 amp

*Line Cord: 6 Ft., 3-wire, double insulated, 16 AWG, U.L. Listed

*Plug: 3-pole, American (grounded)

*Dim: 4-3/8 (L) x 2-9/16 (W) x 2-3/4" (H)

*Weight: .95 lbs.

These are special in the fact they can be mounted either the typical way with threaded rods though the unit or mounted to bolt holes on the sides of the units.

 These units can be mounted in any direction and are complete with adjustable front louvers. All units have 1 inch copper inlet and outlets for high flow.

We provide a limited lifetime warranty against manufacturer's defects.

  All hanging heaters come packed in foam to prevent damage during shipping. We are a well established US company with many years of experience selling parts and supplies to the solar and outdoor wood furnace industries. Feel free to contact us with any questions you may have about hydronic heating or cooling parts and supplies whether you bought them from us or not.

***We will ship to Alaska/Hawaii...please call for shipping quote***
