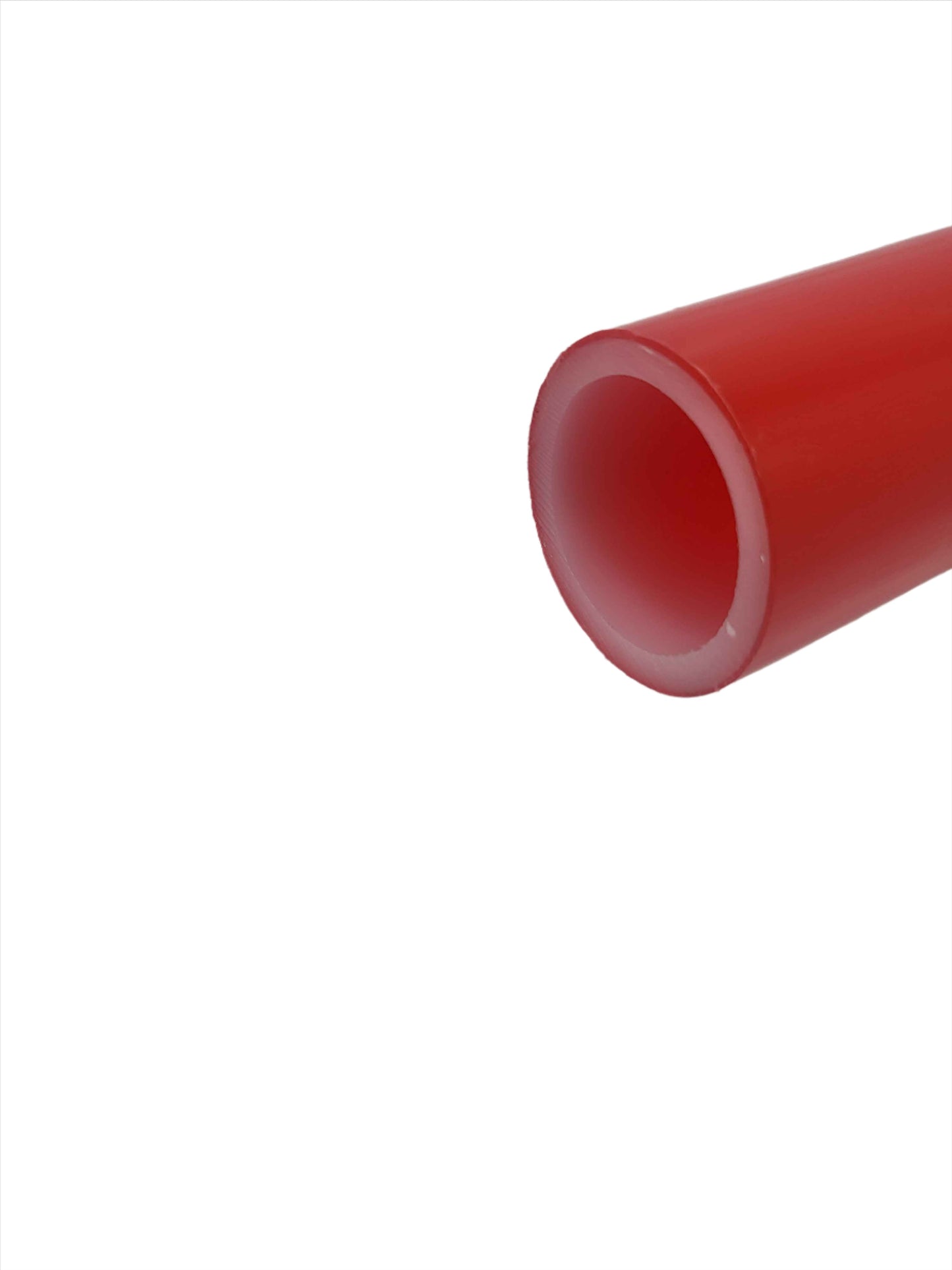

1/2" Oxygen Barrier PEX B Tubing- 300' coil - RED Certified in Floor Heating
This listing is for one roll of 300' of 1/2" NSF Certified Oxygen Barrier PEX B Tubing For Heating and Plumbing.
NSF Certified PEX tubing is made to the following specifications.
Made to ASTM specifications.
Rated for 160 PSI at 73 degrees
100 PSI at 180 Degrees
80 PSI at 200 degrees
OD .625
ID .485
Wall Thickness .075
Weight per foot .05
ASTM 876/877
Not to be installed in Direct Sunlight
Made using the silane method (water bath).
There is a coating on the outside of the pex, so when used with pressurized boiler systems, it keeps oxygen from permeating the system and causing rust. It is not needed with open systems or potable water systems.
|
PEX Size |
Inside Diameter |
Outside Diameter |
Volume Gal/100 ft |
|
3/8” |
.360 |
.500 |
.50 |
|
1/2” |
.485 |
.625 |
.92 |
|
3/4" |
.681 |
.875 |
1.83 |
|
1” |
.875 |
1.125 |
3.03 |
NSF Certified Pex tubing is connected in 2 different ways.
Crimp fittings are the most effective way of connecting. This is done with a barbed fitting and a copper crimp ring. The ring is compressed with the use of a crimp ring tool. This method is the cheapest and best way to a connection and is the least susceptible to leaks down the road.
You can also use push-fit fittings. They are great for a quick repair, or a small installation project. They are however more expensive and more susceptible to leaks down the road.
Do Not use pex tubing for any of the following applications.
Anywhere the temperature could reach 230 F or more.
Not for use with steam.
Keep out of direct sunlight.
Keep away from areas that are exposed to a flame or heat source.
Not to be used with liquids -40 F or below
