3/4" Non-Barrier PEX B Tubing- 500' coil-BLUE Certified Htg/Plbg/Potable Water

  • $185.00

Click here for products to help with the installation of this product.

This listing includes 500 feet of 3/4 inch blue certified non-barrier PEX tubing, suitable for heating, plumbing, and potable water systems. The tubing meets NSF standards with an outer diameter of 0.875 inches, inner diameter of 0.671 inches, and wall thickness of 0.102 inches. Each foot weighs 0.1 pounds and conforms to ASTM specifications. It is rated for 100 psi at 180 degrees, 80 psi at 200 degrees, and 160 psi at 73 degrees. Please note, this tubing should not be installed in direct sunlight.

 Made using the silane method (water bath).

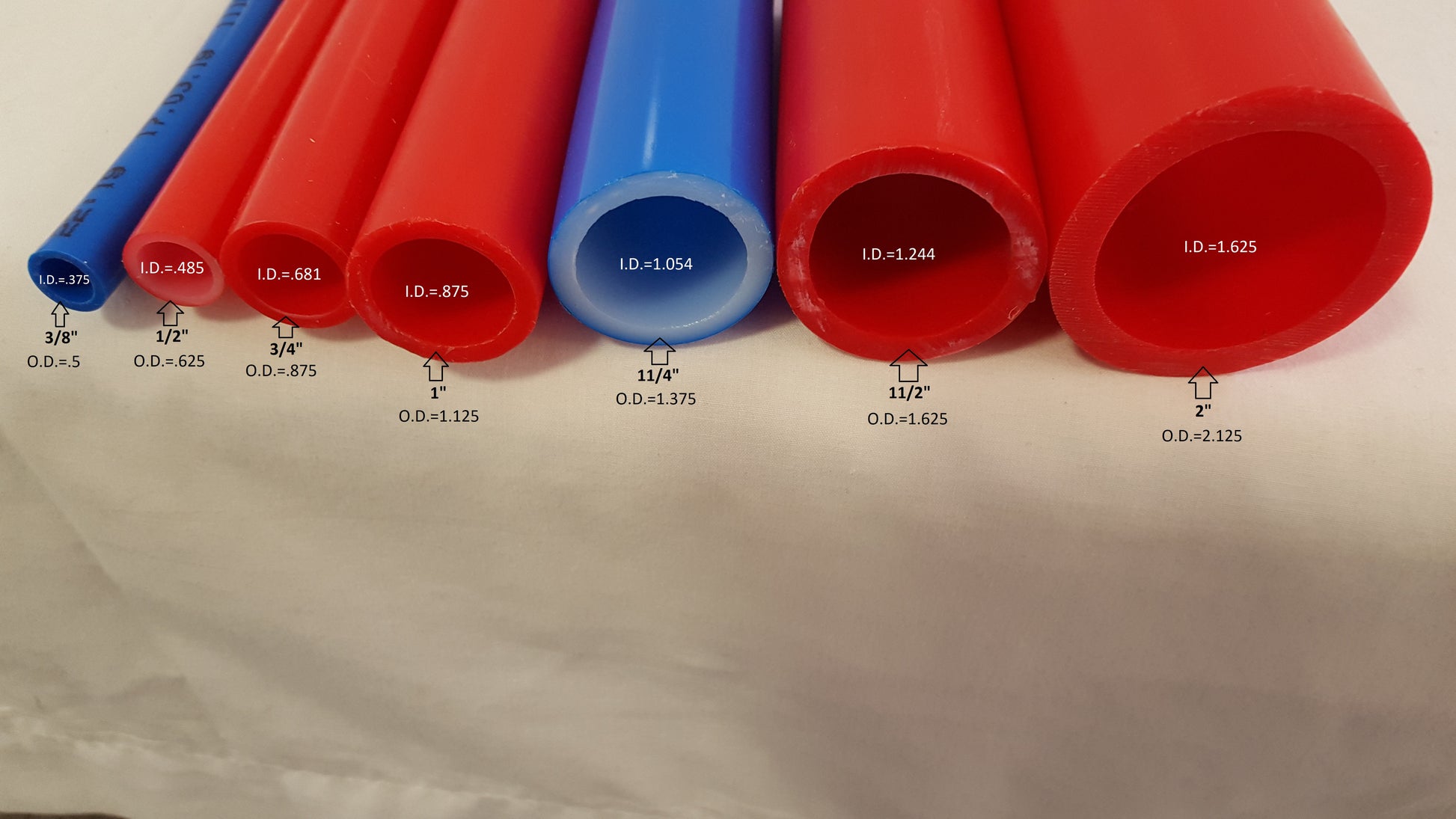

PEX Size

Inside Diameter

Outside Diameter

Volume Gal/100 ft

















NSF Certified Pex tubing is connected in 2 different ways.

 Crimp fittings are the most effective way of connecting. This is done with a barbed fitting and a copper crimp ring. The ring is compressed with the use of a crimp ring tool. This method is the cheapest and best way to a connection and is the least susceptible to leaks down the road.

You can also use push-fit fittings. They are great for a quick repair, or a small installation project. They are however more expensive and more susceptible to leaks down the road.

Do Not use pex tubing for any of the following applications.

Anywhere the temperature could reach 230 F or more.

Not for use with steam.

Keep out of direct sunlight.

Keep away from areas that are exposed to a flame or heat source.

Not to be used with liquids -40 F or below

***We will ship to Alaska/Hawaii...please call for shipping quote***
