3/4" Non-Barrier PEX B Tubing- 1000' coil-BLUE Certified Htg/Plbg/Potable Water

  • $387.00


Click here for products to help with the installation of this product.

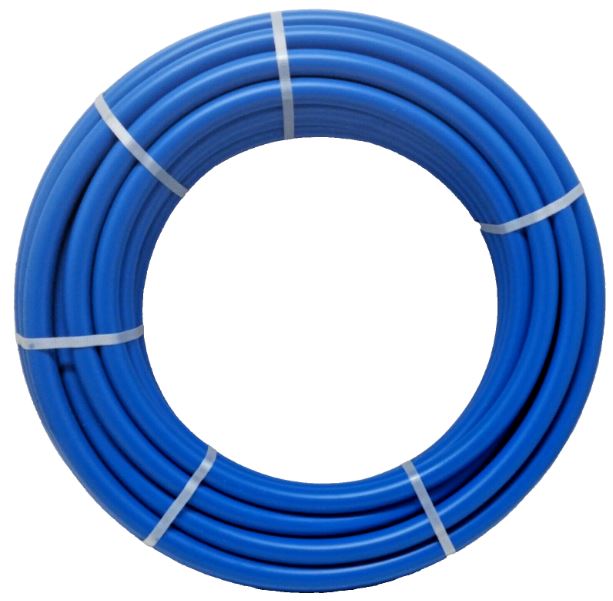

This listing is for one roll of 1000' of 3/4" NSF Certified Non Oxygen Barrier PEX B Tubing for heating, plumbing and direct burial.

NSF Certified PEX tubing is made to the following specifications.

OD .875

ID .671

Wall Thickness .102

Weight per foot .1

ASTM 876/877

NSF Certified for Potable Water

Not to be installed in Direct Sunlight

Made to ASTM specifications.

Rated at 100 psi at 180 degrees.

Rated at 80 psi at 200 degrees.

Rated at 160 psi at 73 degrees.

Made using the silane method (water bath).

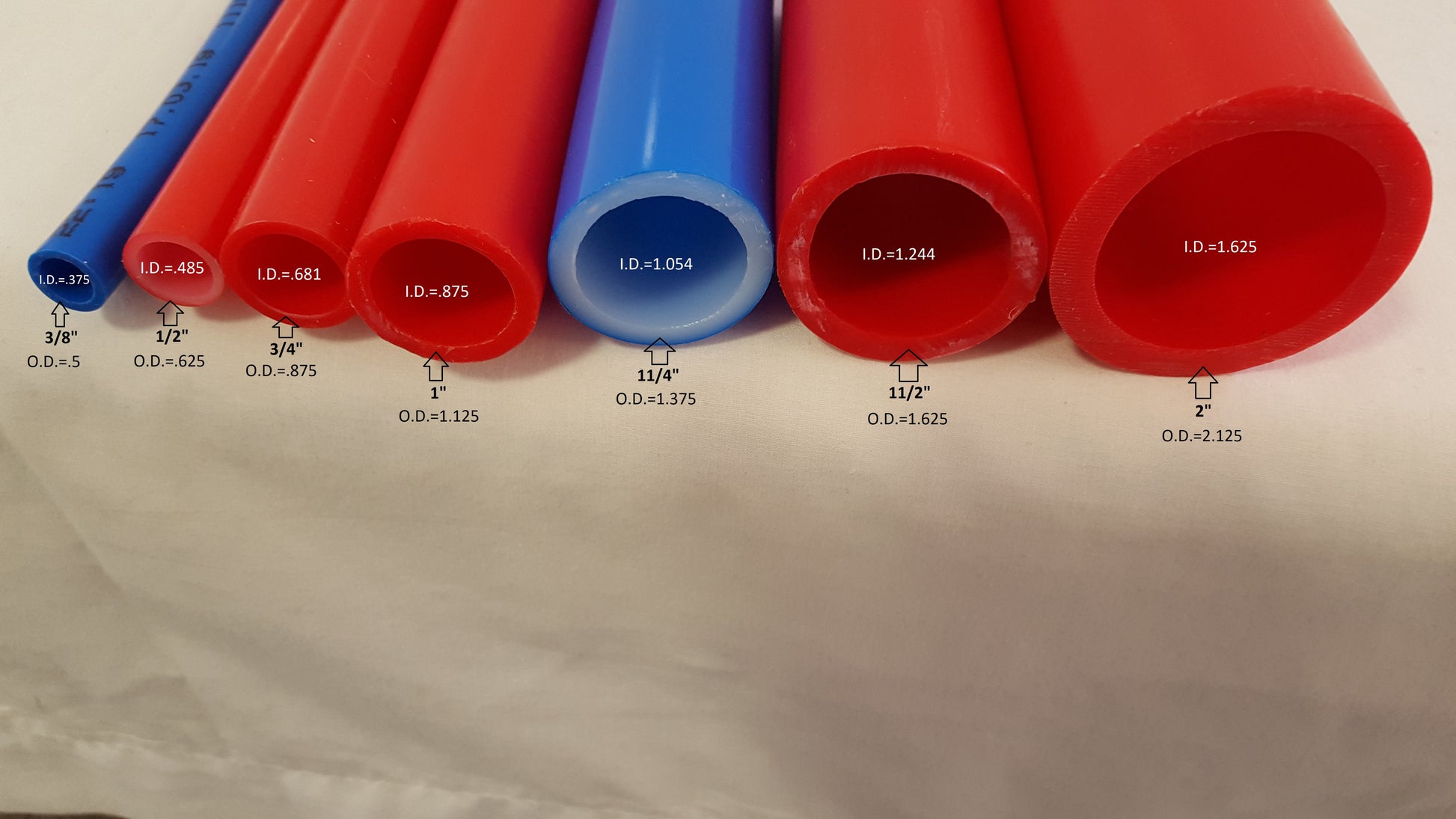

PEX Size

Inside Diameter

Outside Diameter

Volume Gal/100 ft

3/8”

.360

.500

.50

1/2”

.485

.625

.92

3/4"

.681

.875

1.83

1”

.875

1.125

3.03


NSF Certified Pex tubing is connected in 2 different ways.

 Crimp fittings are the most effective way of connecting. This is done with a barbed fitting and a copper crimp ring. The ring is compressed with the use of a crimp ring tool. This method is the cheapest and best way to a connection and is the least susceptible to leaks down the road.

You can also use push-fit fittings. They are great for a quick repair, or a small installation project. They are however more expensive and more susceptible to leaks down the road.

Do Not use pex tubing for any of the following applications.

Anywhere the temperature could reach 230 F or more.

Not for use with steam.

Keep out of direct sunlight.

Keep away from areas that are exposed to a flame or heat source.

Not to be used with liquids -40 F or below


***We will ship to Alaska/Hawaii...please call for shipping quote***

 This product will ship via freight truck, please provide an active phone number for the freight company.

PLEASE NOTE:  If additional services are needed from the freight company, the buyer is responsible for those charges. Example: Lift gate, re-delivery charge.  If you are not available for your appointment, or if the phone number provided is incorrect, you are responsible for the re-delivery fee.
