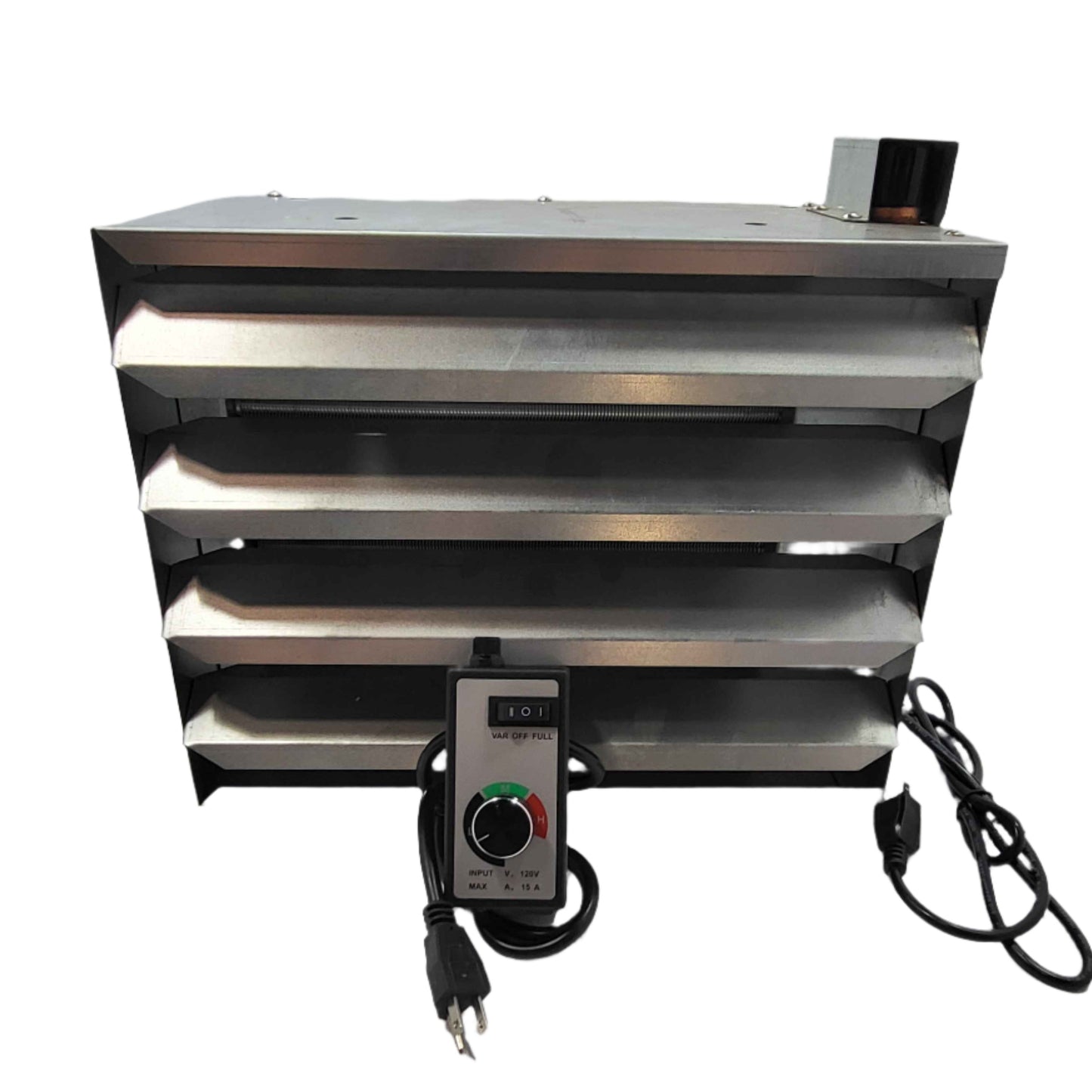

150k NEW STYLE Hydronic hanging heater, w/CORD, VARIABLE SPEED AND RHEOSTAT!
150,000 BTUs / 100 PSI Hanging unit heater for garages, warehouses, greenhouses, ect. Hangs from ceiling and uses hot water to heat your dwelling.
New style makes your installation look much cleaner as both inlet and return pipes(The inlet/outlet ports are the same no matter which one you choose for hot or cold)come out next to each other on the top of the unit. This also makes the units much more efficent because no air becomes trapped in the unit.
Other Sizes available,Units plug directly into a wall outlet! DOES NOT INCLUDE THERMOSTAT WITH THIS UNIT. The fan speed on this unit is controlled with a Rheostat which is included.
These heat exchangers are to be hooked up to a boiler or a chilled water source. If using as a chilled water source, a drip pan will need to be provided by owner.
Width = 23 ¾”
Height = 20”
Depth = 15” including fan
Outlet Port: 1"
Weight = 48 lbs – Shipping Weight = 75 on pallet
*CURRENT CAPACITY: 15 AMPS
*VOLTAGE CAPACITY: 120 AC
*FUSE: 15 AMP
*LINE CORD: 6 FT., 3-WIRE, DOUBLE INSULATED, 16 AWG, U.L. LISTED
*PLUG: 3-POLE, AMERICAN (GROUNDED)
*DIM: 4-3/8 (L) X 2-9/16 (W) X 2-3/4" (H)
*WEIGHT: .95 LBS.
These are special in the fact they can be mounted either the typical way with threaded rods though the unit or mounted to bolt holes on the sides of the units.
These units can be mounted in any direction and are complete with adjustable front louvers. All units have 1 inch copper inlet and outlets for high flow.
We provide a 3 year warranty against manufacturer's defects and corrosion.
All hanging heaters come packed in foam to prevent damage during shipping. We are a well established US company with many years of experience selling parts and supplies to the solar and outdoor wood furnace industries. Feel free to contact us with any questions you may have about hydronic heating or cooling parts and supplies whether you bought them from us or not.
***We will ship to Alaska/Hawaii...please call for shipping quote***
Shipping of larger items are freight truck. Smaller items are shipped UPS or Speedee. If your purchase is for insulated pipe, be sure we receive a phone number for the freight company. If item is shipped freight though not absolutely required, it is best if shipped to a commercial address.
