1 1/4" Non-Oxygen Barrier 500' Blue PEX tubing for heating and plumbing

  • $709.28

Click here for products to help with the installation of this product.

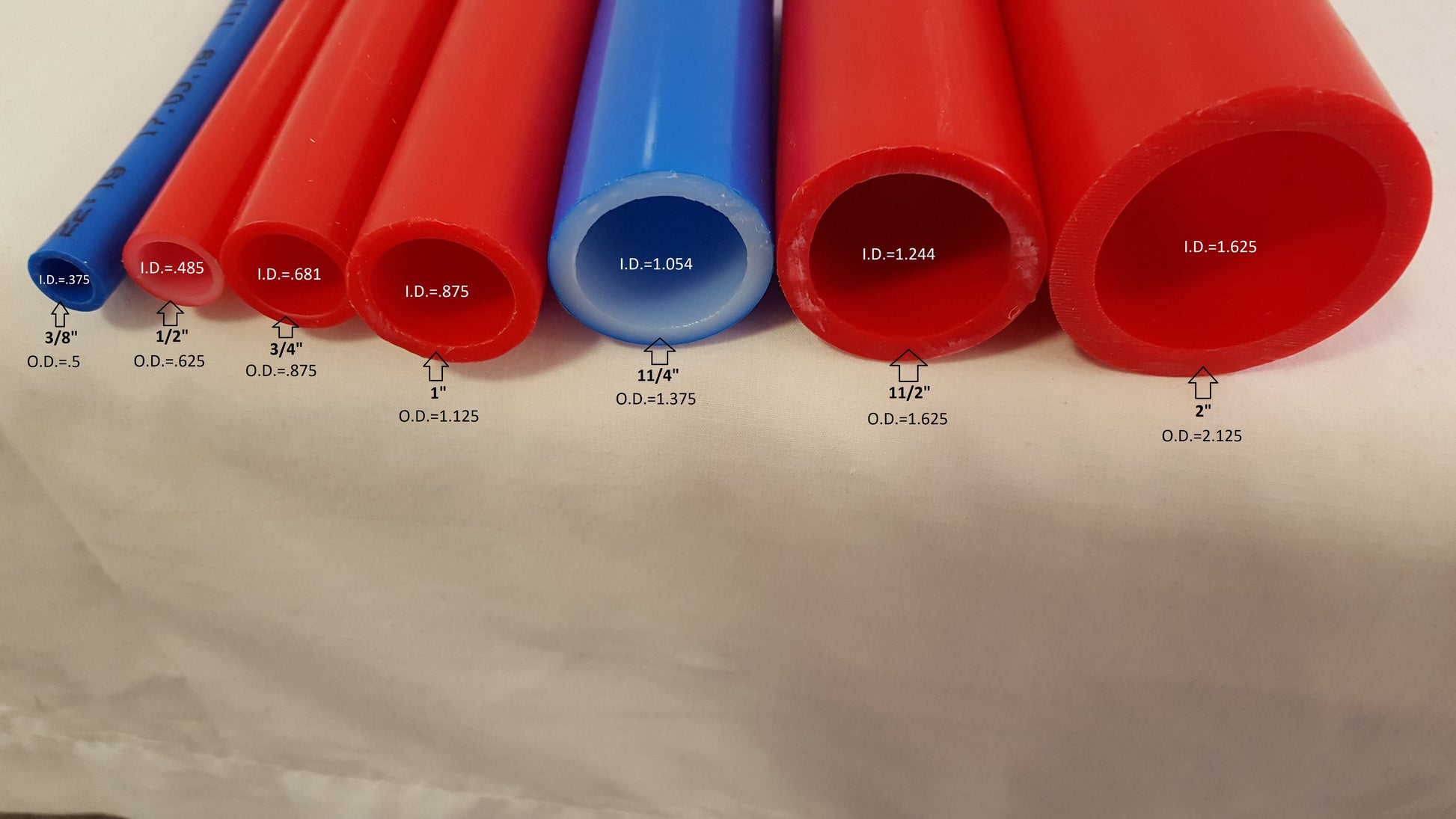

This product offer is for 1 roll of 500' of 1 1/4" Blue Non-Oxygen Barrier PEX tubing, specifically designed for heating, plumbing, and direct burial applications. Our BHS PEX tubing adheres to the following technical specifications: outer diameter 1.375 inches, inner diameter 1.054 inches, wall thickness 0.16 inches, and weight per foot 0.25 pounds. It meets the standards of ASTM 876/877 and is not suitable for use in direct sunlight. This type B PEX tubing is manufactured using the silane method (water bath) and is rated at 100 psi at 180 degrees, 80 psi at 200 degrees, and 160 psi at 73 degrees.



BHS PEX tubing is connected in 2 different ways.

Crimp fittings are the most effective way of connecting. This is done with a barbed fitting and a copper crimp ring. The ring is compressed with the use of a crimp ring tool.

 This method is the cheapest and best way to a connection and is the least susceptible to leaks down the road.

You can also use push-fit fittings. They are great for a quick repair, or a small installation project. They are however more expensive and more susceptible to leaks down the road.

Do Not use PEX tubing for any of the following applications.

Anywhere the temperature could reach 230 F or more.
Not for use with steam.
Keep out of direct sunlight.
Keep away from areas that are exposed to a flame or heat source.
Not to be used with liquids -40 F or below

***We will ship to Alaska/Hawaii...please call for shipping quote***

This product will ship via freight truck, please provide an active phone number for the freight company.

PLEASE NOTE:  If additional services are needed from the freight company, the buyer is responsible for those charges. Example: Lift gate, re-delivery charge.  If you are not available for your appointment, or if the phone number provided is incorrect, you are responsible for the re-delivery fee.
