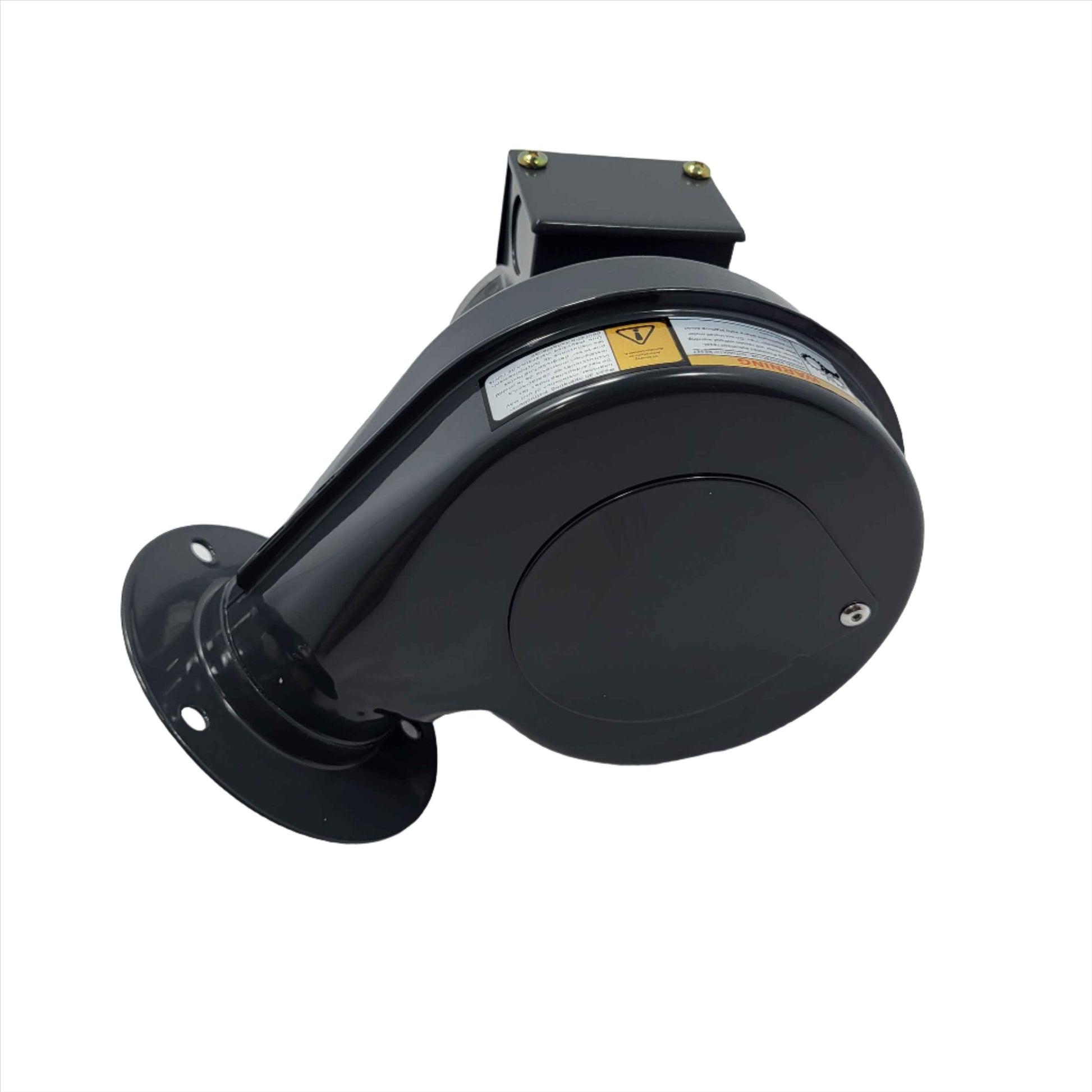

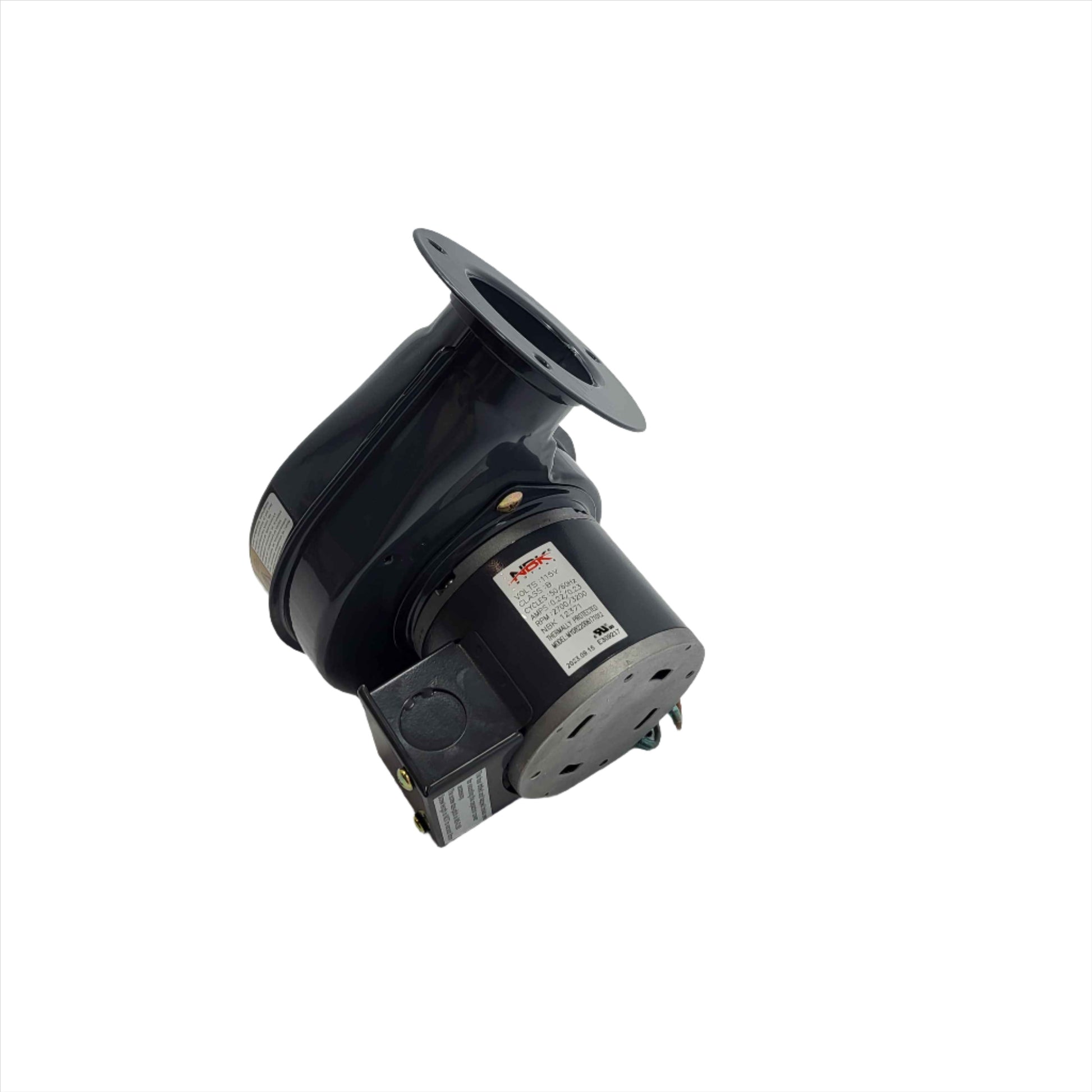

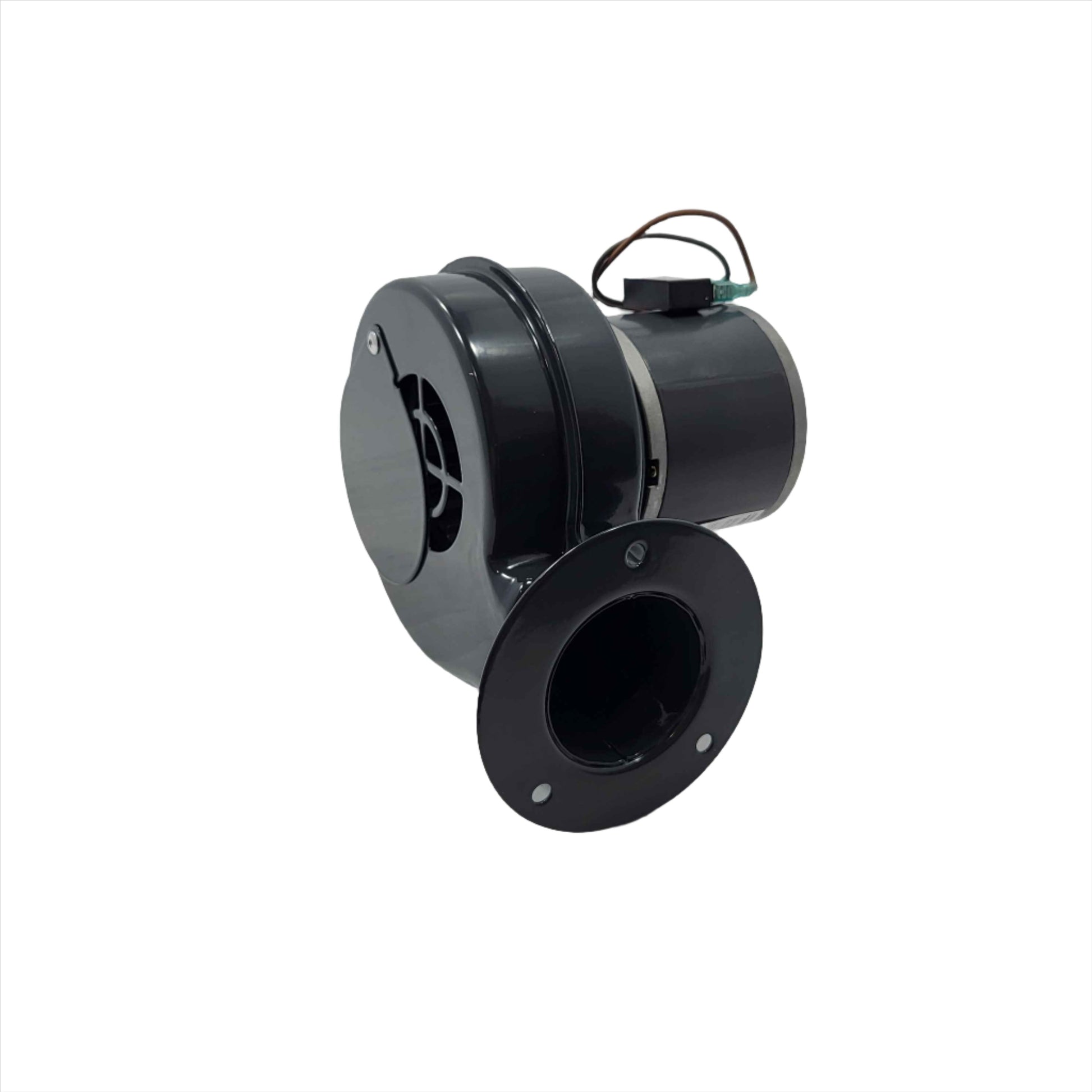

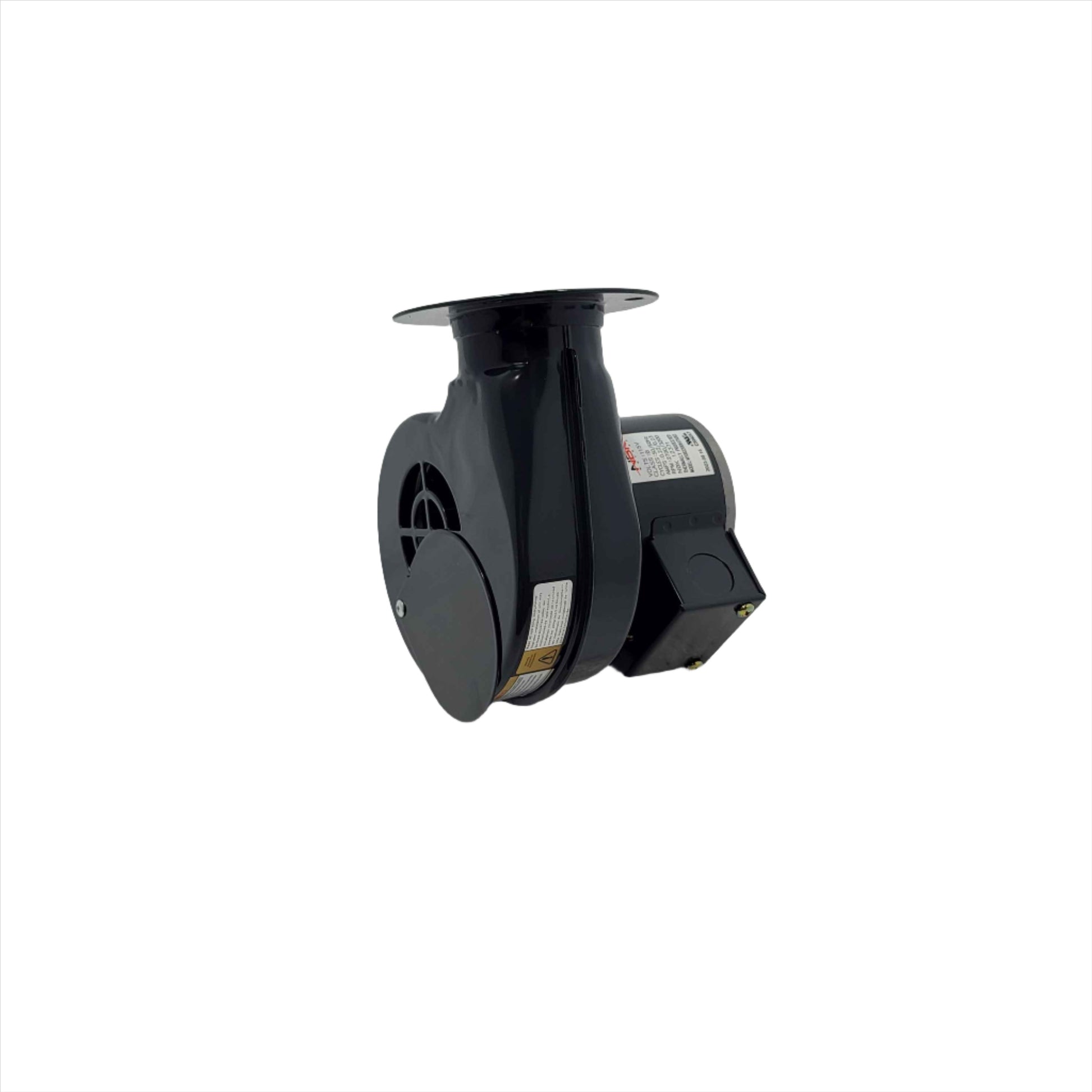

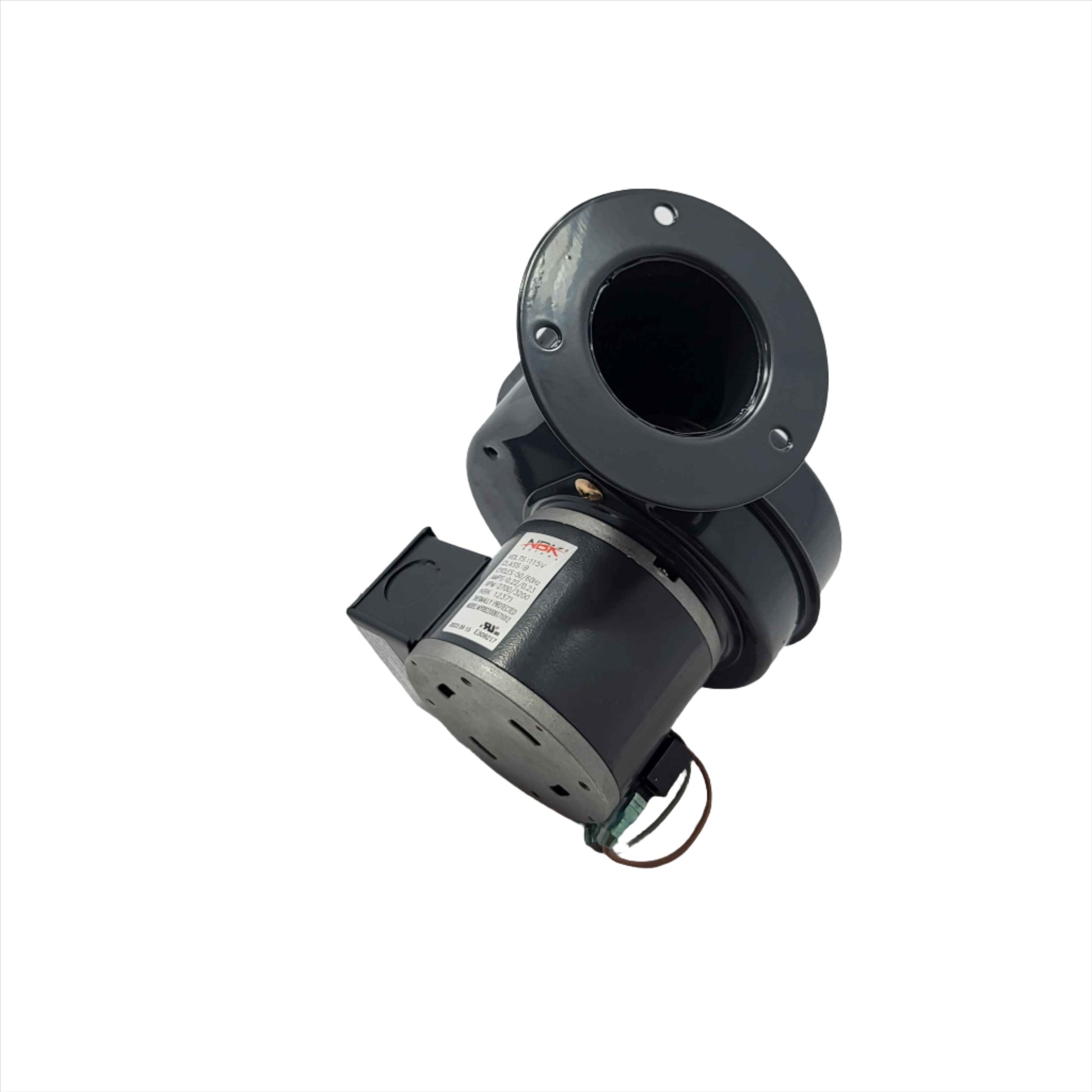

1TDP3 75cfm-4c443 Blower
4c443 Blower-1TDP3 75cfm
Technical Specs
- Item: OEM Blower
- Outlet Shape: Round
- Wheel Dia: 3-13/16"
- Wheel Width: 1-7/8"
- CFM: @ 0.000-In. SP 70
- CFM: @ 0.100-In. SP 65
- CFM: @ 0.200-In. SP 60
- CFM: @ 0.300-In. SP 55
- CFM: @ 0.400-In. SP 50
- CFM: @ 0.500-In. SP 45
- Voltage: 115
- Hz: 60/50
- Phase: 1
- Full Load Amps: 0.95/0.74
- RPM: 2870
- Bearing Type: Sleeve
- Motor Type: Shaded Pole
- Motor Enclosure: Open Dripproof
- Thermal Protection: Auto
- Lead Length: 12"
- Conduit Box: Yes
- Max. Ambient Temp: 104 Degrees F
- Max. Inlet Temp: 104 Degrees F
- Inlet Dia: 3-1/8"
- Outlet Dia: 2-1/8"
- Overall Height: 5-13/16"
- Overall Width: 6-1/2"
- Overall Depth: 6-5/16"
- Wheel Type: Forward Curve
- Drive Type: Direct
- Mounting Position: All Position
- Housing Finish: Baked Enamel
- Housing Material: Steel
- Housing Color: Gray
- Agency Compliance: UL Component Recognized, CSA Certified
