3 speed Circulating Pump with Cord 34 GPM to use with outdoor furnaces, hot water heat, solar
Our Private Labeled 3 Speed Pumps are an Excellent Product at a Great Price!!!
GPD25-10

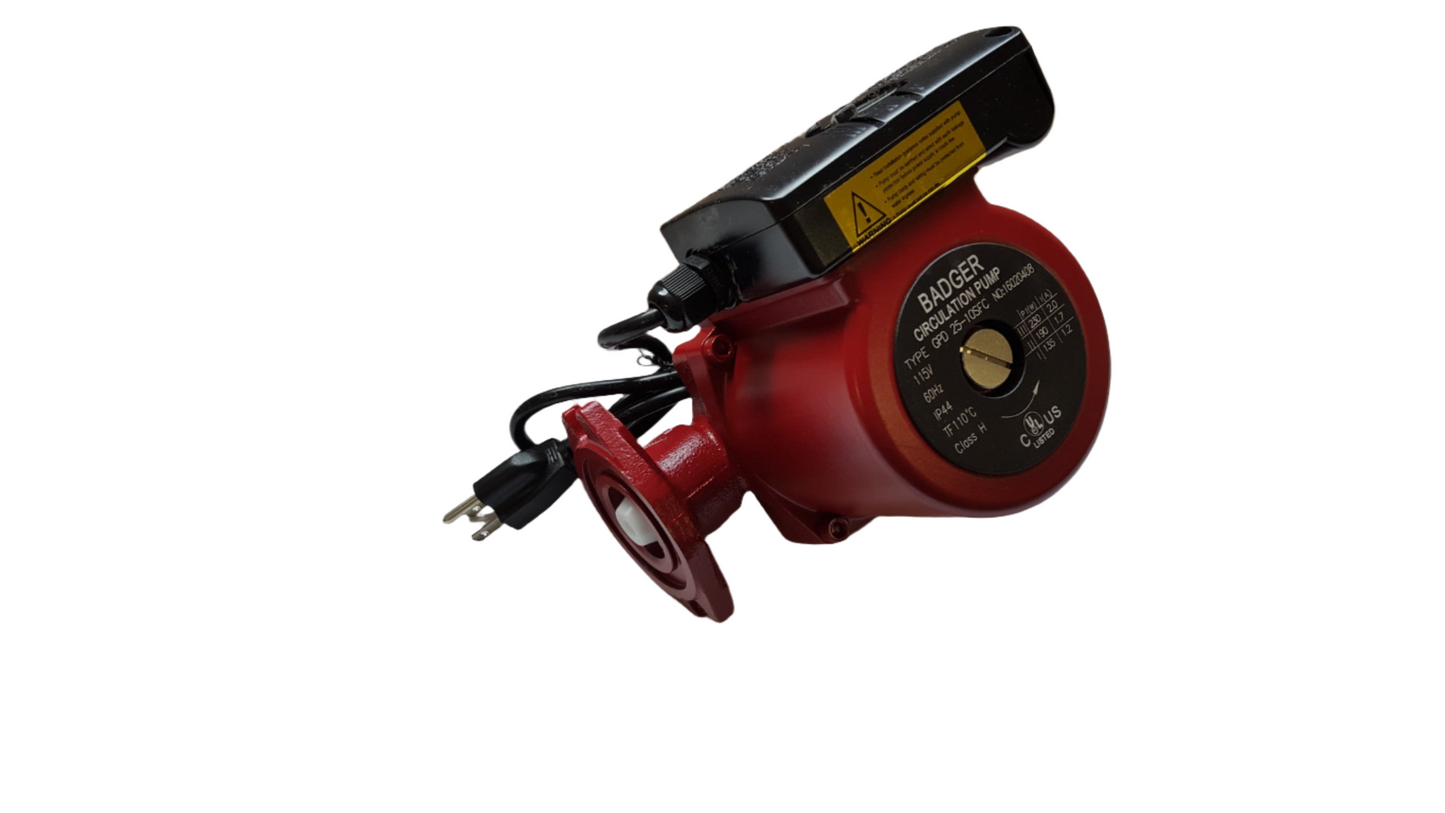

The 34 GPM Badger Circulating Pump with a cord offers:
* Removable Check Valve * Rotor Bleed Screw * 3 Speed ( Low, Med, High ) * Ceramic Shaft * 2 year warranty *Flow range: 0-34 U. S. GPM *Head range: 0-30Feet
Gallons/Minute
Low:20-24
Medium:24-28
High:30-34
Operation Conditions
* Ambient temperature: Max. 104°F (40 )
* Liquid temperature: 36°F (2 ) ~ 230°F (110 )
* System pressure: Max. 145 psi.
Installation
* The main parts of the pump include: pump body, impeller, stator, rotor, shielded sets, and vent plug.
* The pump does not use mechanical seal; stator and rotor are sealed with stainless steel.
The overall pump structure is sealed with two heat-resistant rubber gaskets to avoid leakage.
* The pump bearing is lubricated and cooled by the pumped water.
** Pump shaft must be installed horizontally.*
Interchanges with Grundfos 26-96, Taco 011, Wilo Star 30, Wasser GPD10 and others.
