3 speed Circulating Pump 20 GPM use with outdoor furnaces, hot water heat, solar
Our Private Labeled 3 Speed Pumps are an Excellent Product at a Great Price!!!
GPD 15-6 SFC

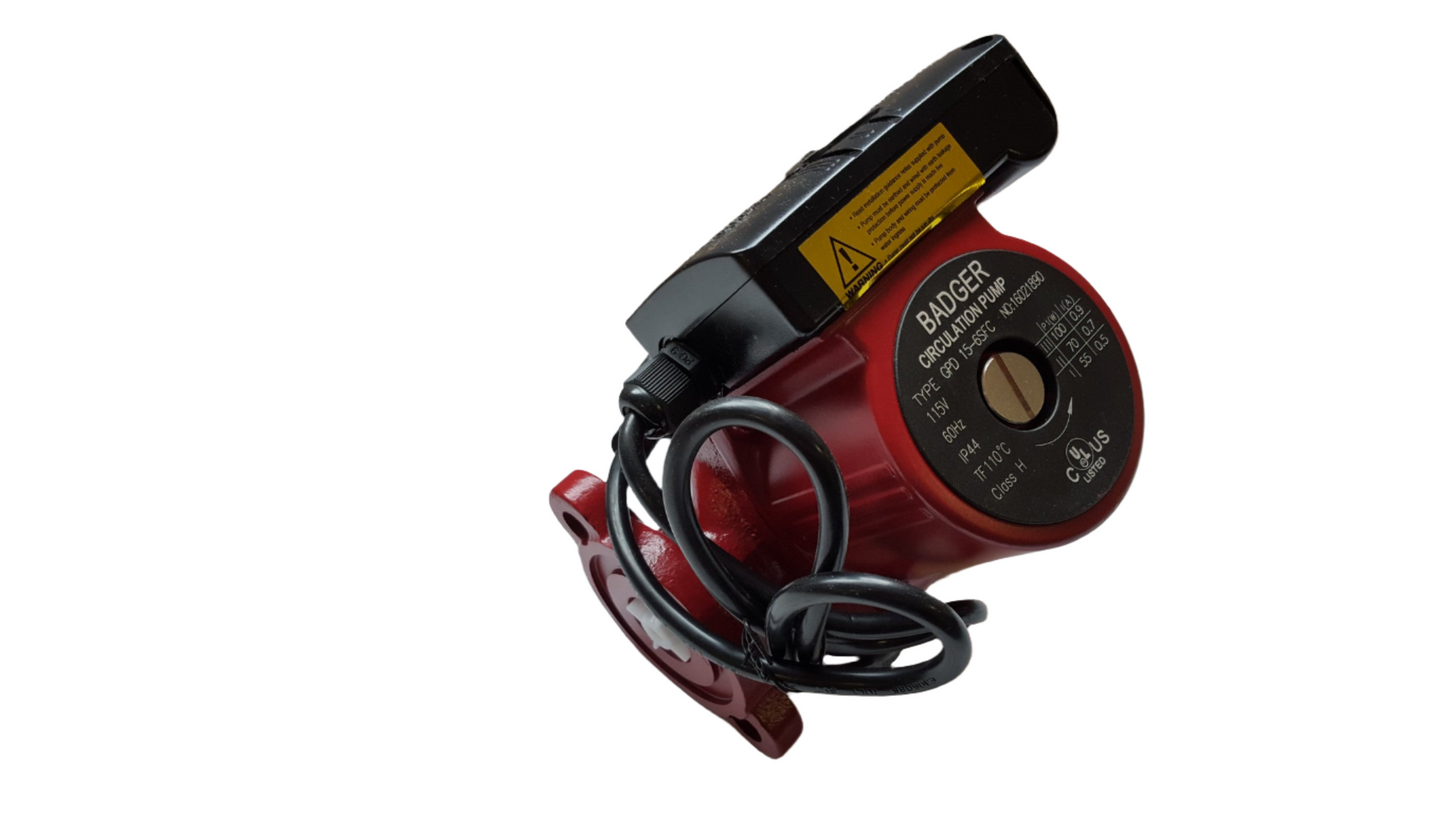

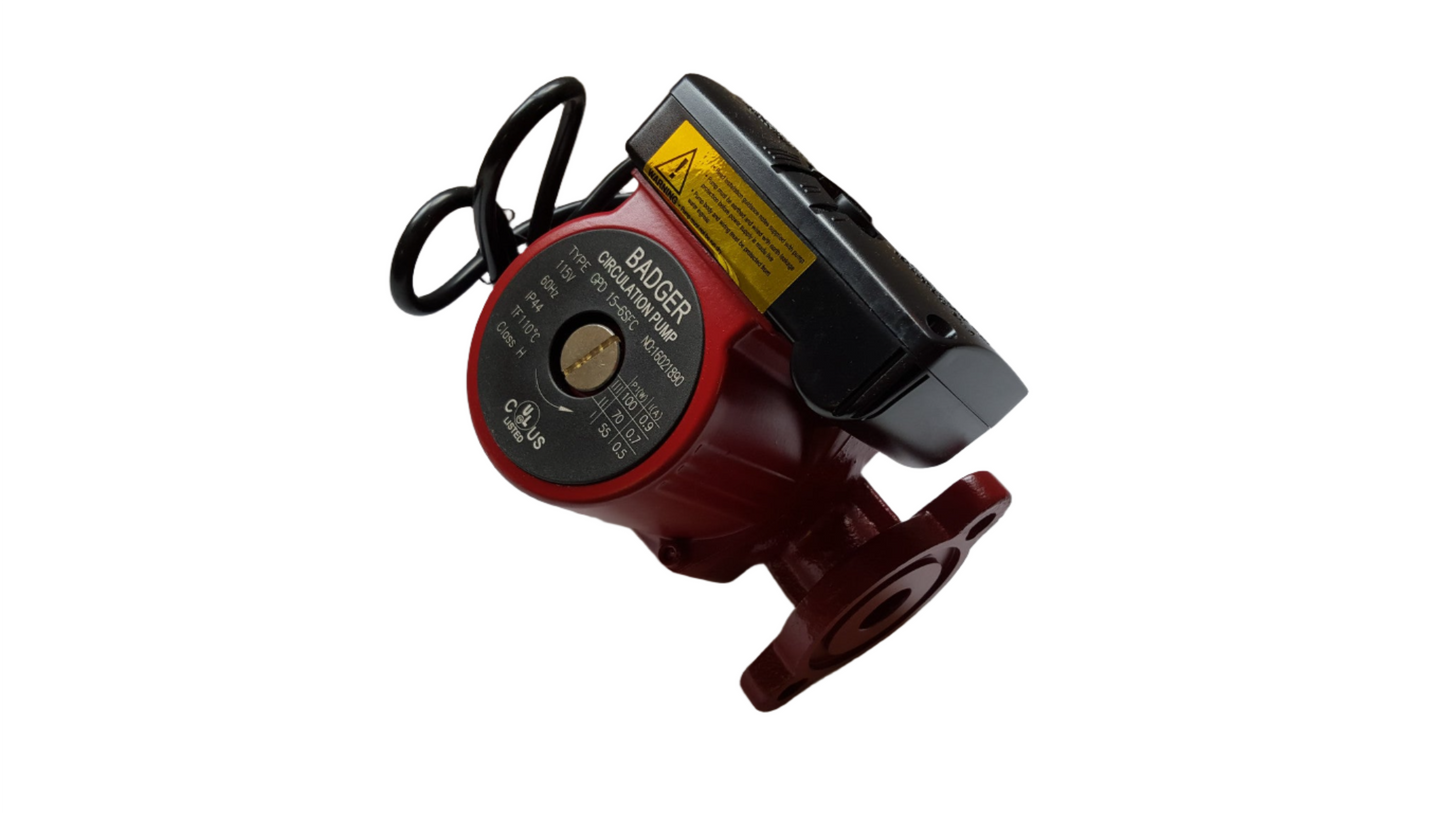

The 20 GPM Badger Circulating Pump with a cord offers:

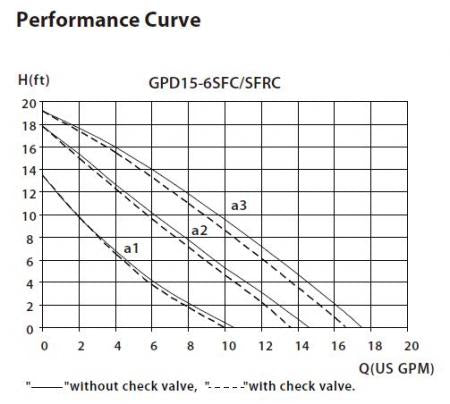

* Removable Check Valve * Rotor Bleed Screw * 3 Speed ( Low, Med, High ) * Ceramic Shaft * 2 year warranty *Flow range: 0-20 U. S. GPM *Head range: 0-22Feet
Gallons/Minute
Low:7-11
Medium:11-14
High:14-20
Operation Conditions
* Ambient temperature: Max. 104°F (40 ) C
* Liquid temperature: 36°F (2 )C ~ 230°F (110 ) C
* System pressure: Max. 145 psi.
Installation
* The main parts of the pump include: pump body, impeller, stator, rotor, shielded sets, and vent plug.
* The pump does not use mechanical seal; stator and rotor are sealed with stainless steel.
The overall pump structure is sealed with two heat-resistant rubber gaskets to avoid leakage.
* The pump bearing is lubricated and cooled by the pumped water.
** Pump shaft must be installed horizontally.*
Interchanges with Grundfos 15-58, Taco 008, Wilo Star 21, Wasser GPD06 and others.
