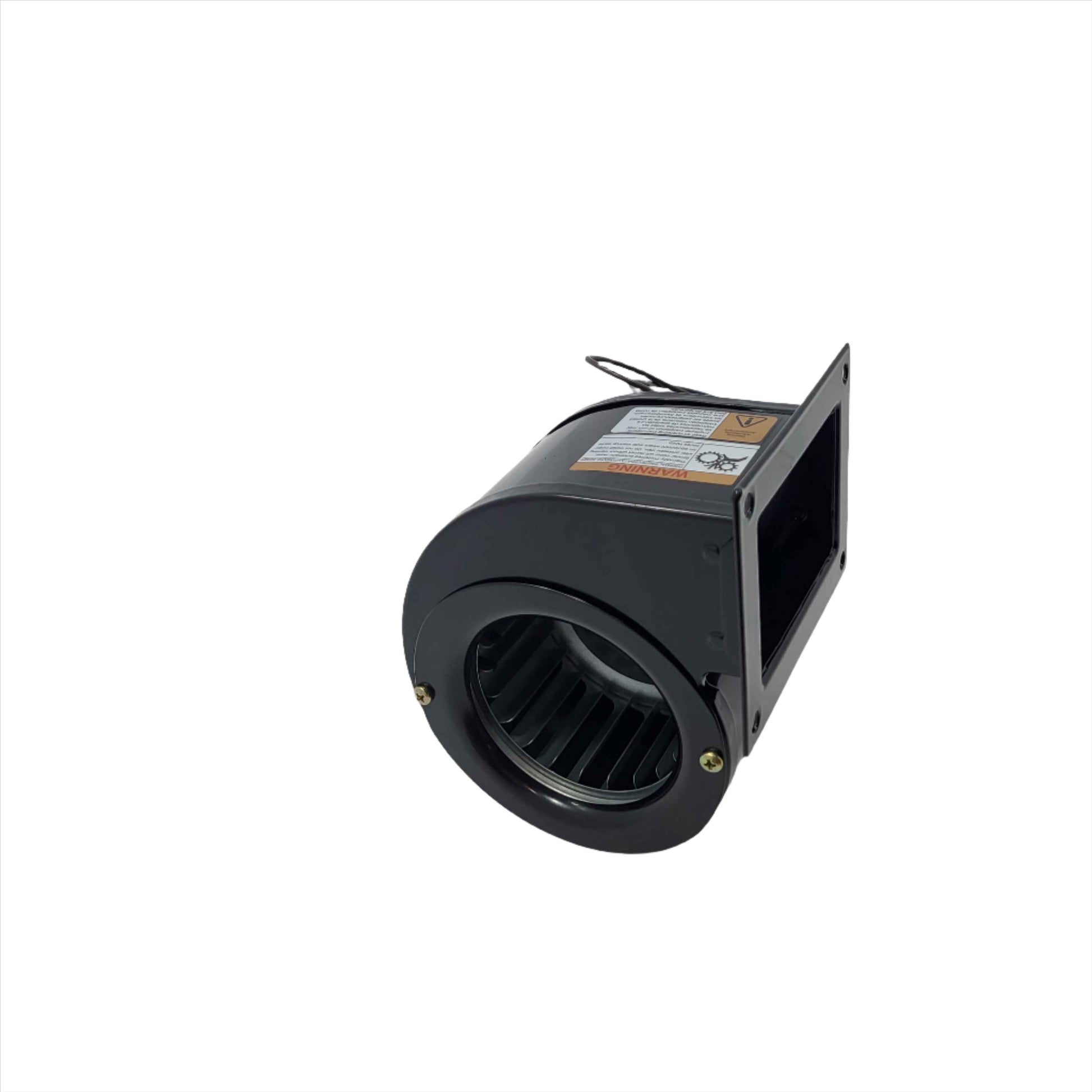

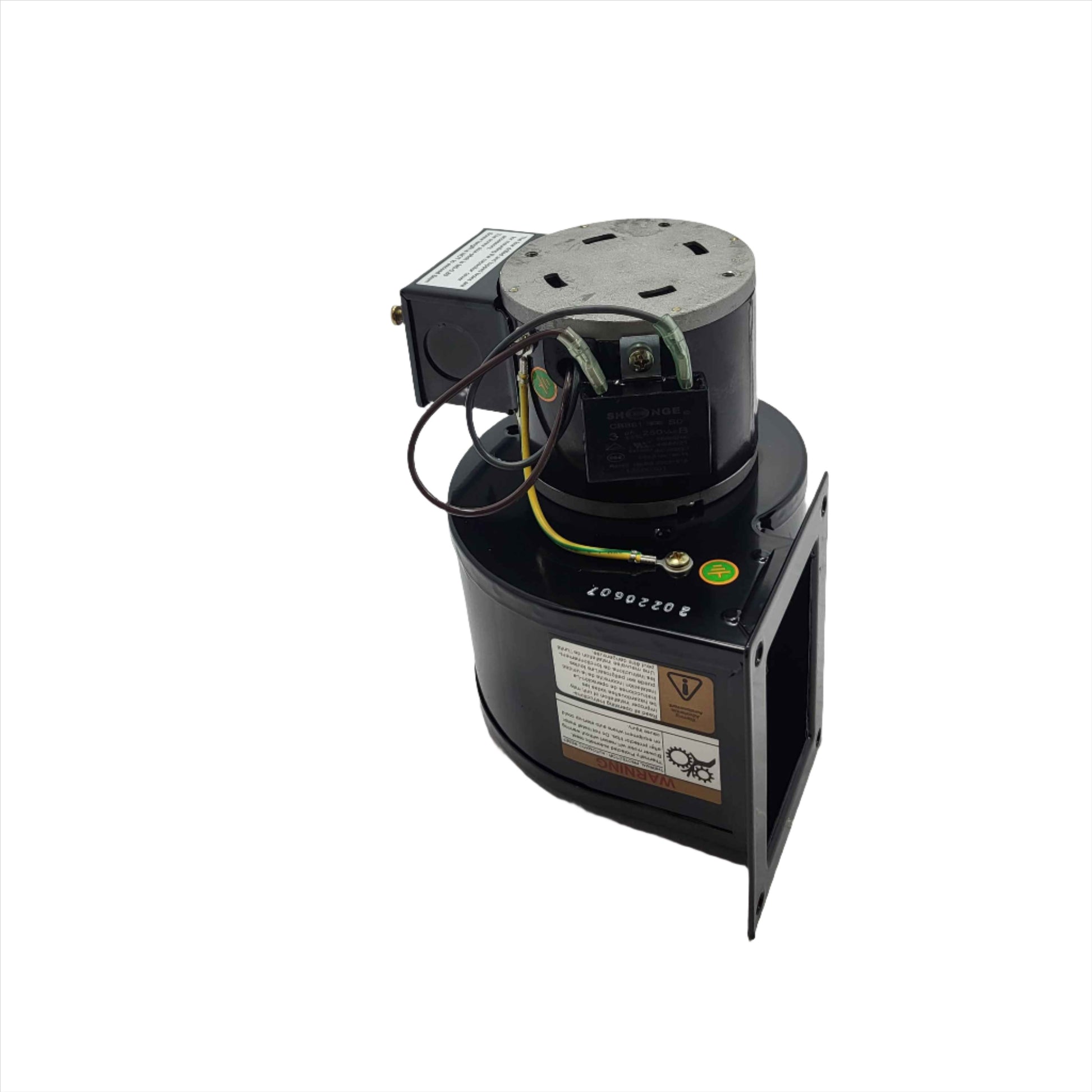

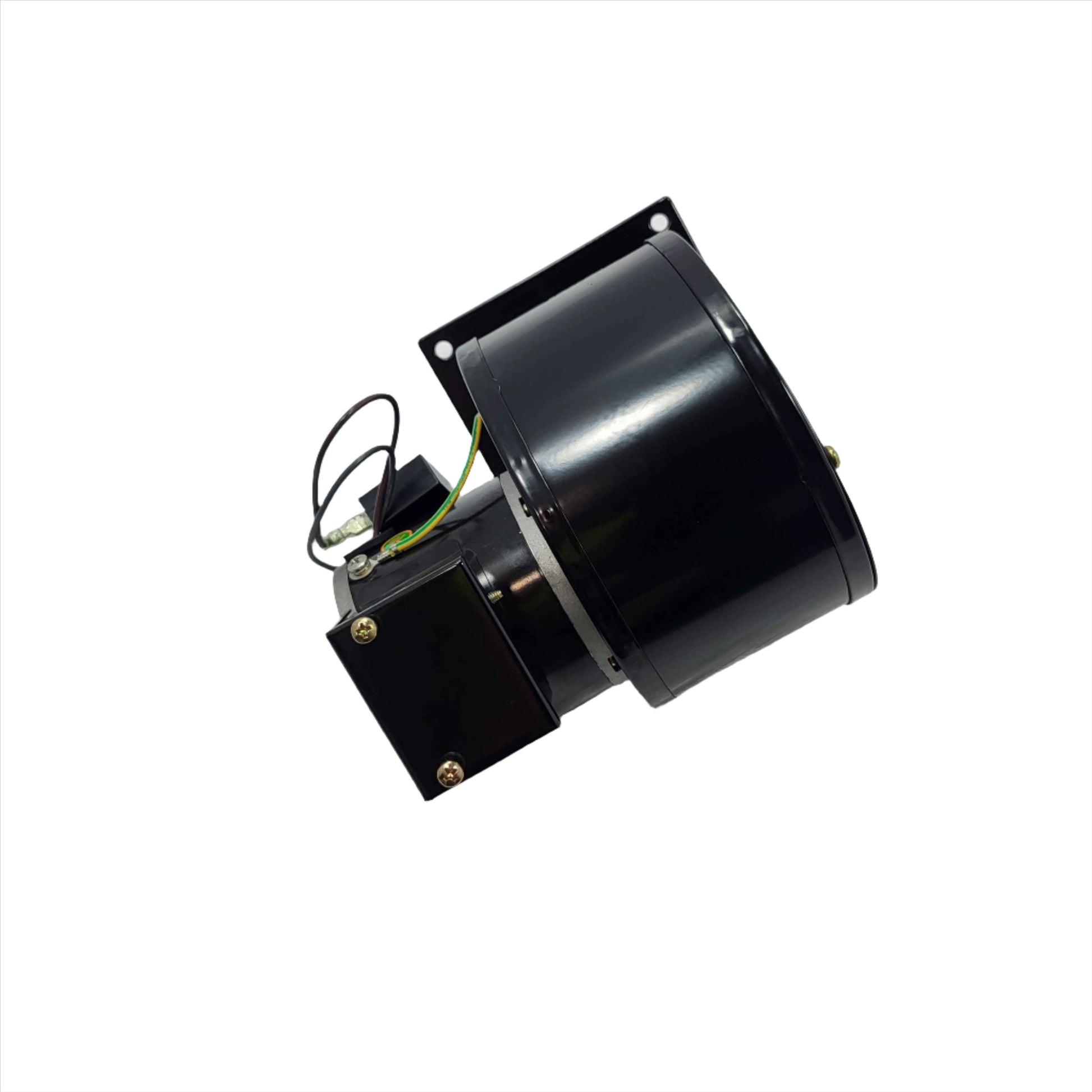

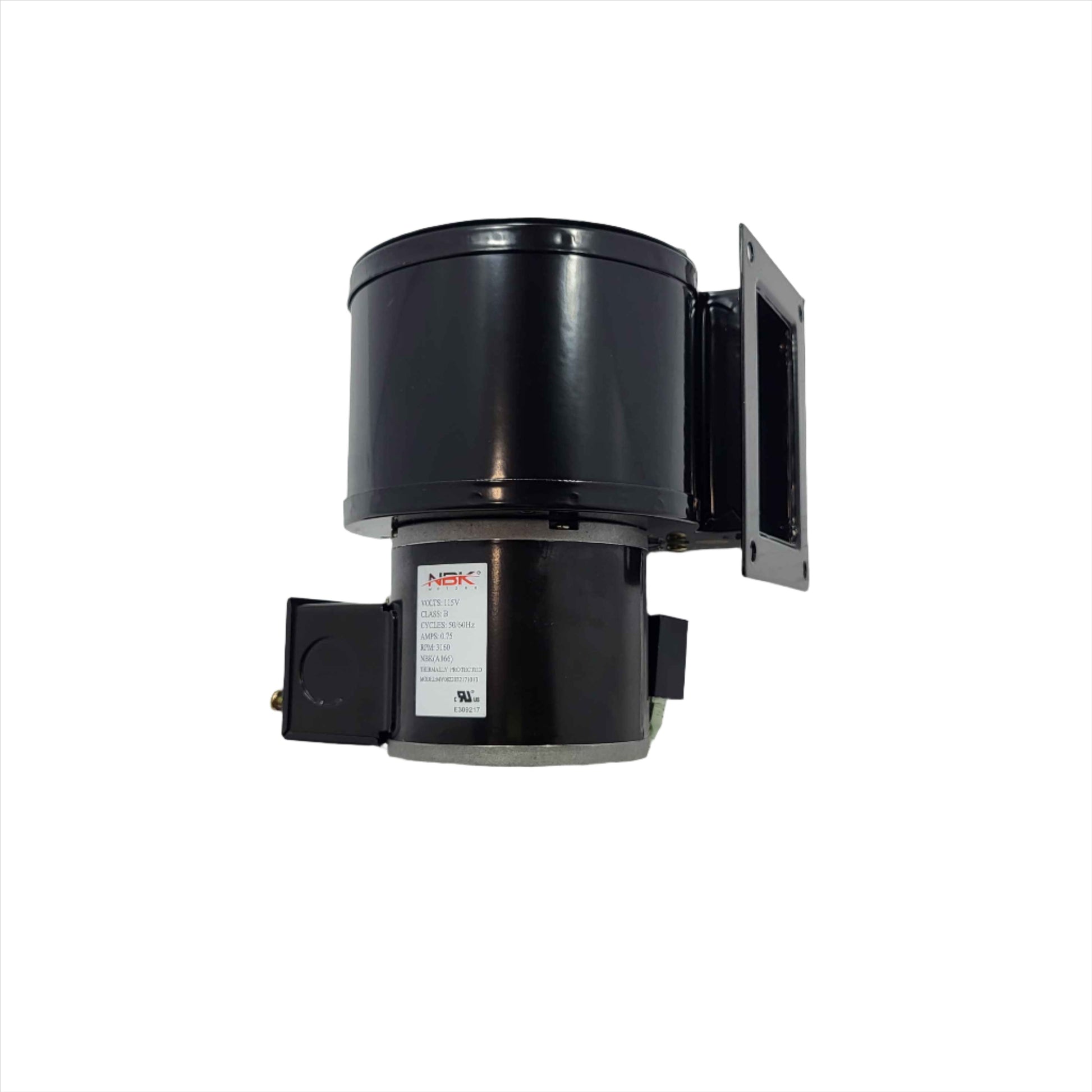

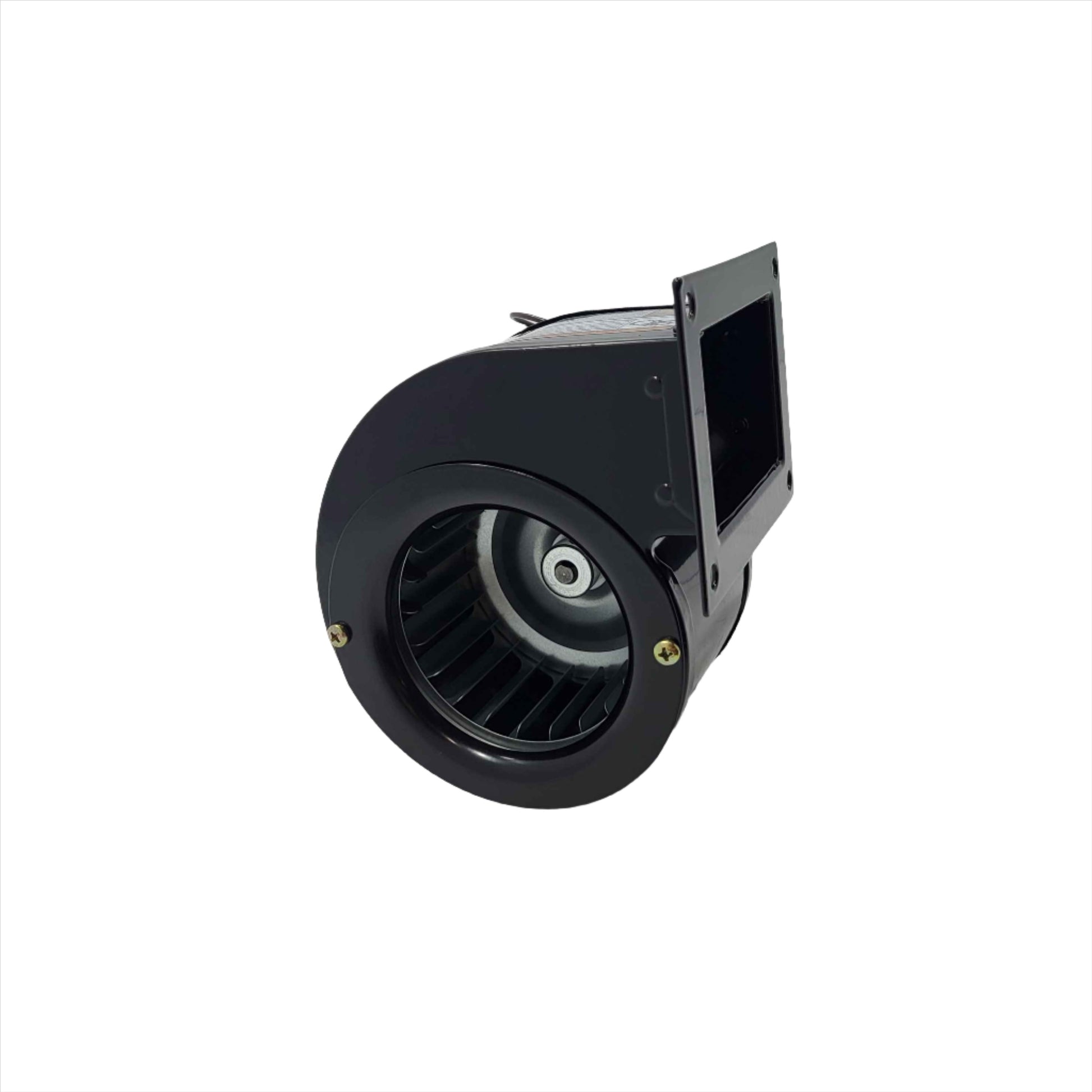

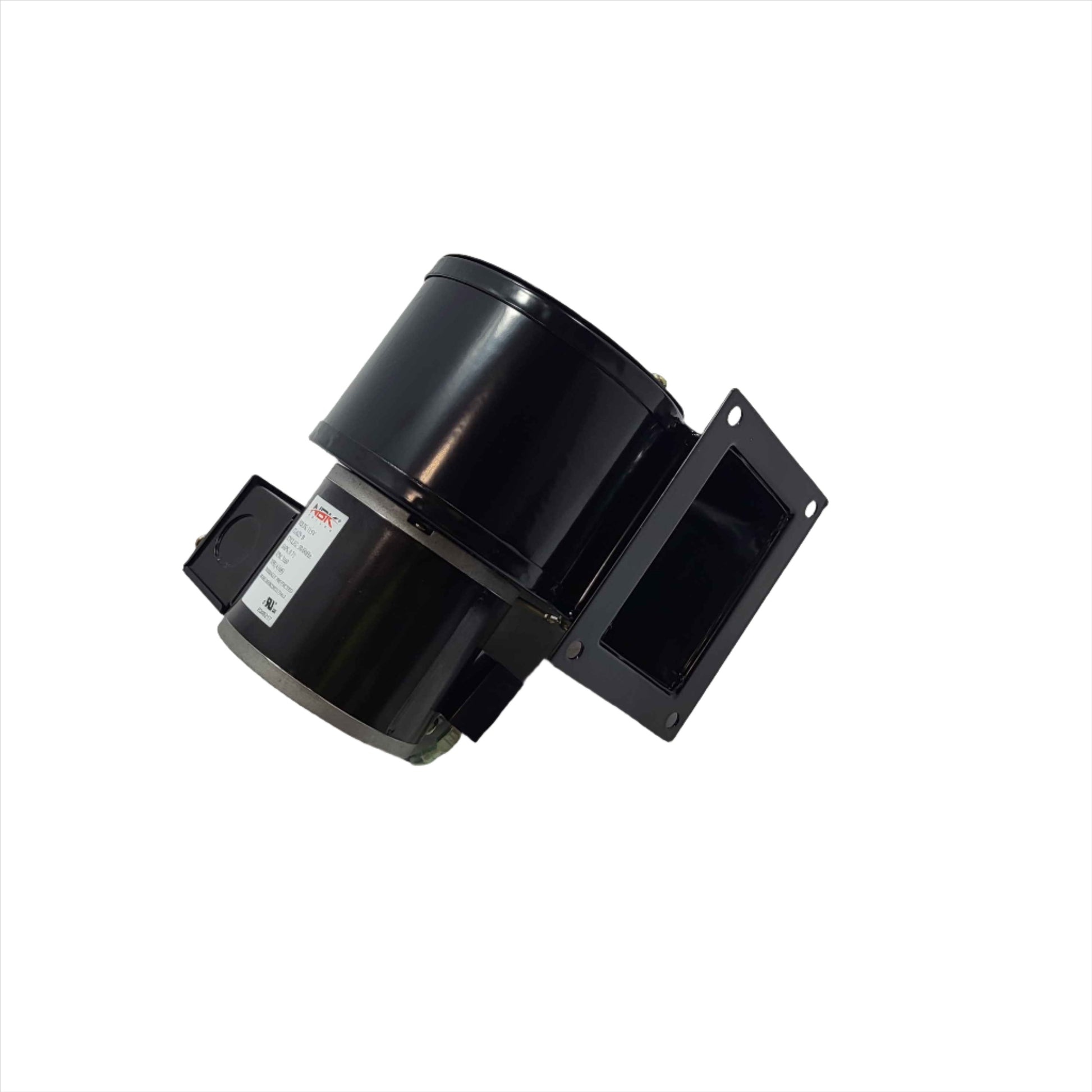

PSC Blower 1TDP7

  • $118.40


1TDP7 PSC Blower

 Technical Specs

  • Item: OEM Blower
  • Outlet Shape: Rectangular
  • With/Without Flange: With Flange
  • Wheel Dia: 6-1/4"
  • Wheel Width: 3-13/16"
  • CFM: @ 0.000-In. SP 542/409
  • CFM: @ 0.100-In. SP 520/398
  • CFM: @ 0.200-In. SP 510/387
  • CFM: @ 0.300-In. SP 480/375
  • CFM: @ 0.400-In. SP 465/362
  • CFM: @ 0.500-In. SP 450/348
  • CFM: @ 0.600-In. SP 420/337
  • CFM: @ 0.700-In. SP 390/300
  • CFM: @ 0.800-In. SP 358/270
  • Voltage: 115
  • Hz: 50/60
  • Phase: 1
  • Full Load Amps: 2.00/1.54
  • RPM: 1430/1060
  • Bearing Type: BALL
  • Motor Type: Permanent Split Capacitor
  • Motor Enclosure: Open
  • Motor Insulation: Class B
  • Thermal Protection: Auto
  • Lead Length: 13"
  • Conduit Box: Yes
  • Max. Ambient Temp: 104 Degrees F
  • Max. Inlet Temp: 104 Degrees F
  • Inlet Dia: 5-5/16"
  • Outlet Height: 4-1/4"
  • Outlet Width: 5-1/4"
  • Overall Height: 11-1/8"
  • Overall Width: 9-1/16"
  • Overall Depth: 10-7/16"
  • Wheel Type: Forward Curve
  • Drive Type: Direct
  • Mounting Position: All Position
  • Housing Finish: Enamel
  • Housing Material: Rolled Steel
  • Housing Color: Gray
  • Agency Compliance UL Recognized US and Canada (E47479), CE
  • Replaces 4C566
  • Includes Discharge Mounting Flange
