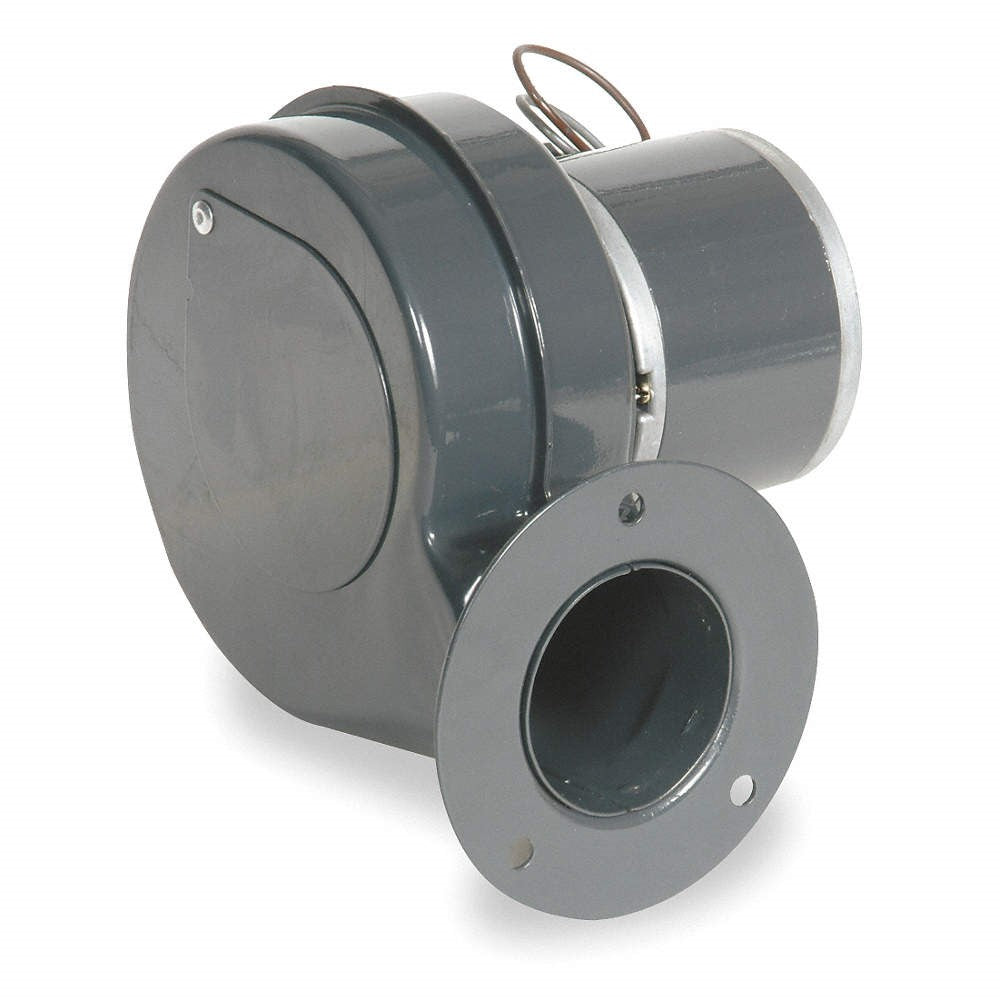

1TDN7 Round Permanent Split Capacitor OEM Blower (replaces 4C440)

1TDN7 Round Permanent Split Capacitor OEM Blower (replaces 4C440)

  • $98.00


Blower- 1TDN7 50cfm

Technical Specs:

  • ItemOEM Blower
  • Blower Outlet ShapeRound
  • With FlangeYes
  • Blower Wheel Diameter3"
  • Blower Wheel Width1-7/8"
  • Blower ItemOEM Specialty Blower
  • Blower Voltage115VAC
  • Blower Motor TypePermanent Split Capacitor
  • Blower Thermal ProtectionAuto
  • Blower Conduit BoxYes
  • CFM @ 0.000-In. SP50
  • CFM @ 0.100-In. SP48
  • CFM @ 0.200-In. SP44
  • CFM @ 0.300-In. SP39
  • CFM @ 0.400-In. SP32
  • CFM @ 0.500-In. SP18
  • Hz50/60
  • Phase1
  • Full Load Amps23
  • RPM3036
  • Bearing TypeBall
  • Motor EnclosureOpen
  • Motor InsulationClass B
  • Lead Length13"
  • Ambient Temp.104 Degrees F
  • Inlet Temp.104 Degrees F
  • Inlet Dia.2-3/8"
  • Outlet Dia.2-1/8"
  • Overall Height5-13/16"
  • Overall Width5-1/8"
  • Overall Depth6-7/16"
  • Wheel TypeForward Curve
  • Drive TypeDirect
  • Mounting PositionAll Position
  • Housing FinishEnamel
  • Housing MaterialRolled Steel
  • Housing ColorGray
  • Agency CompliancecULus Recognized (E47479) for the Motor Only Not the Blower, CE and RoHS Compliance
  • Replaces4C440
  • IncludesDischarge Mounting Flange and Inlet Cover
