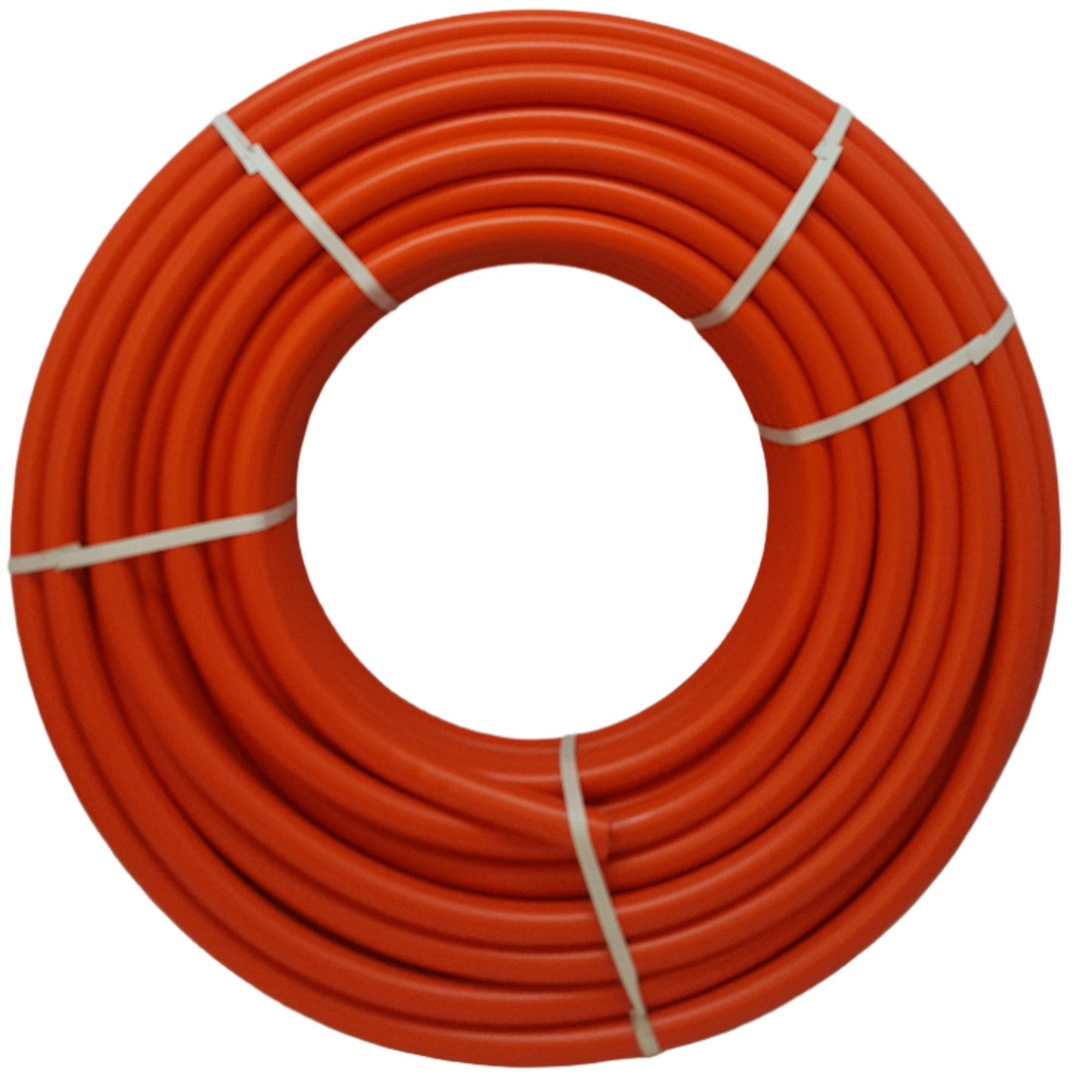

1" 100' PEX AL PEX tubing for heating and plumbing
Click here for products to help with the installation of this product.
USE COMPRESSION FITTINGS WITH THIS TUBING.

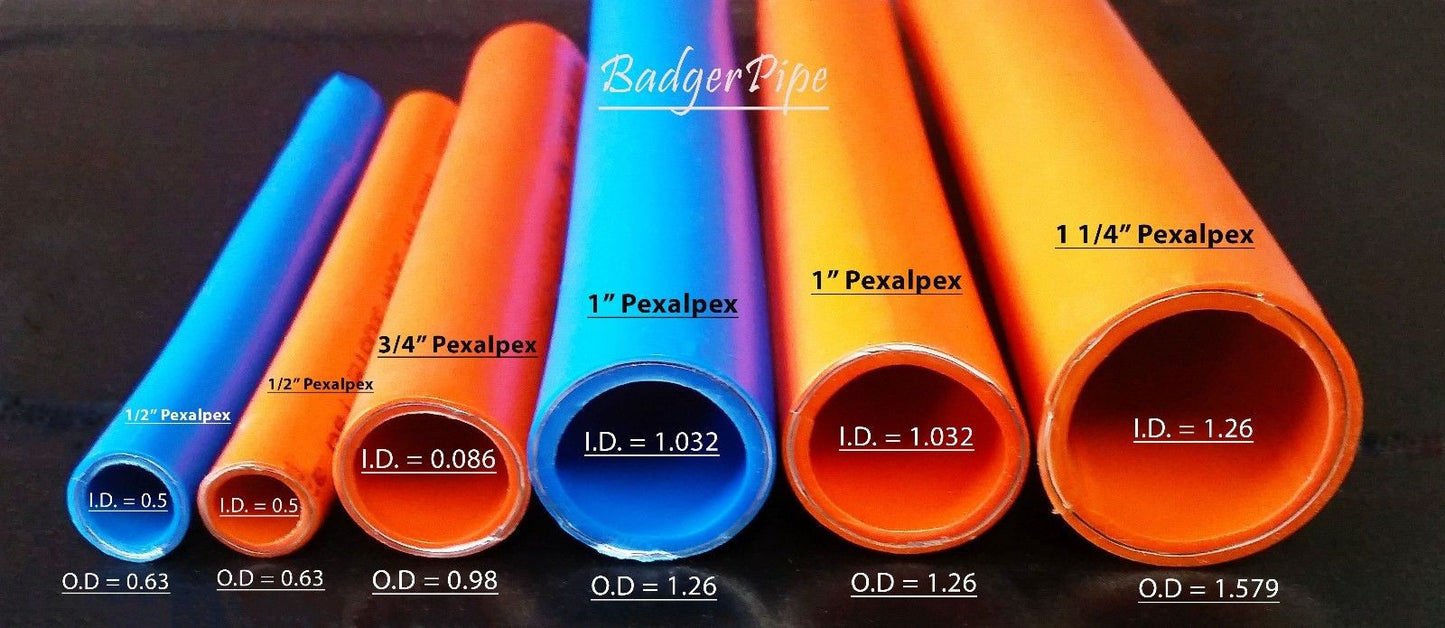

PEX AL PEX Tubing diameters and lengths:
½’ 300’, 1000’
1’ 100’, 250’, 600’’
PEX-AL-PEX Tubing for use in radiant heating applications. Meets/exceeds ASTM F1281, CSA B137.10 standards. Also certified for use in domestic water applications. UPC listed by IAPMO.
Rated for 160 PSI at 73 degrees
100 PSI at 180 Degrees
80 PSI at 200 degrees
Wall Thickness .114
Weight per foot 2.32
Not to be installed in Direct Sunlight
PEX-AL-PEX Tubing is commonly used for radiant heating applications projects such as concrete slabs (wire mesh or rebar reinforced), thin slabs (non-reinforced), below the sub-floor heating (staple-up), sandwich type installations (between sub-floor and finished floor) and many others. Typical loop length for 1/2" PEX-AL-PEX varies from 250' to 350', depending of the application, supply temperatures, flow rates, etc. 300' is considered standard for typical concrete slab install.
- PEX-AL-PEX tubing can be installed using compression style PEX Fittings of Press type system (fittings, sleeves and tools)
1" PEX AL PEX tubing is commonly used for installing outdoor wood furnaces, solar systems, in floor applications and plumbing uses.

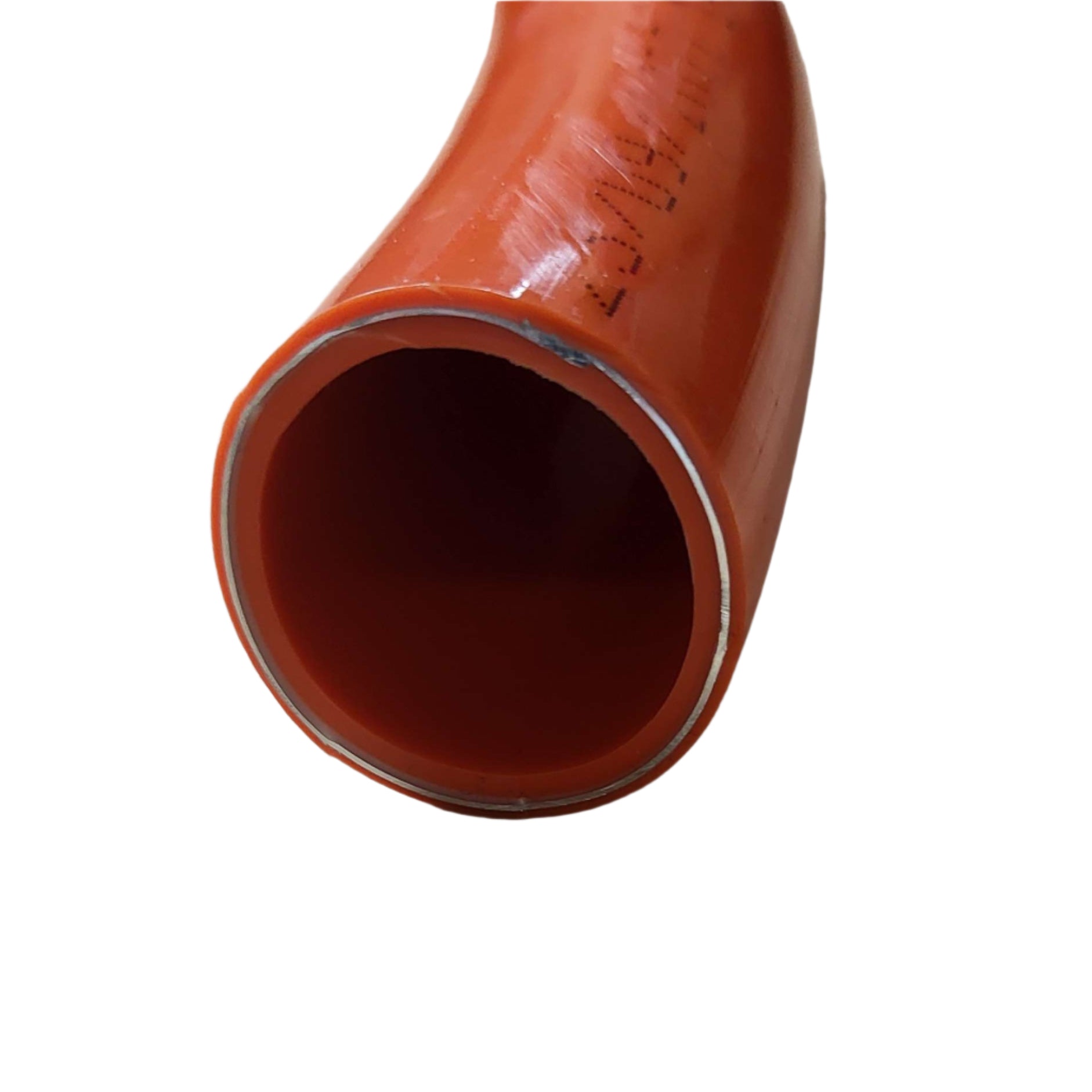

PEX AL PEX is a tubing which has a layer of aluminum in it to prevent oxygen penetration. Plumbers like it because the pipe has a memory and stays where you bend it, a lot more like copper tubing.
We have over 200,000 feet of this in stock and always ship your order the within 24 business hours after the order is placed.
