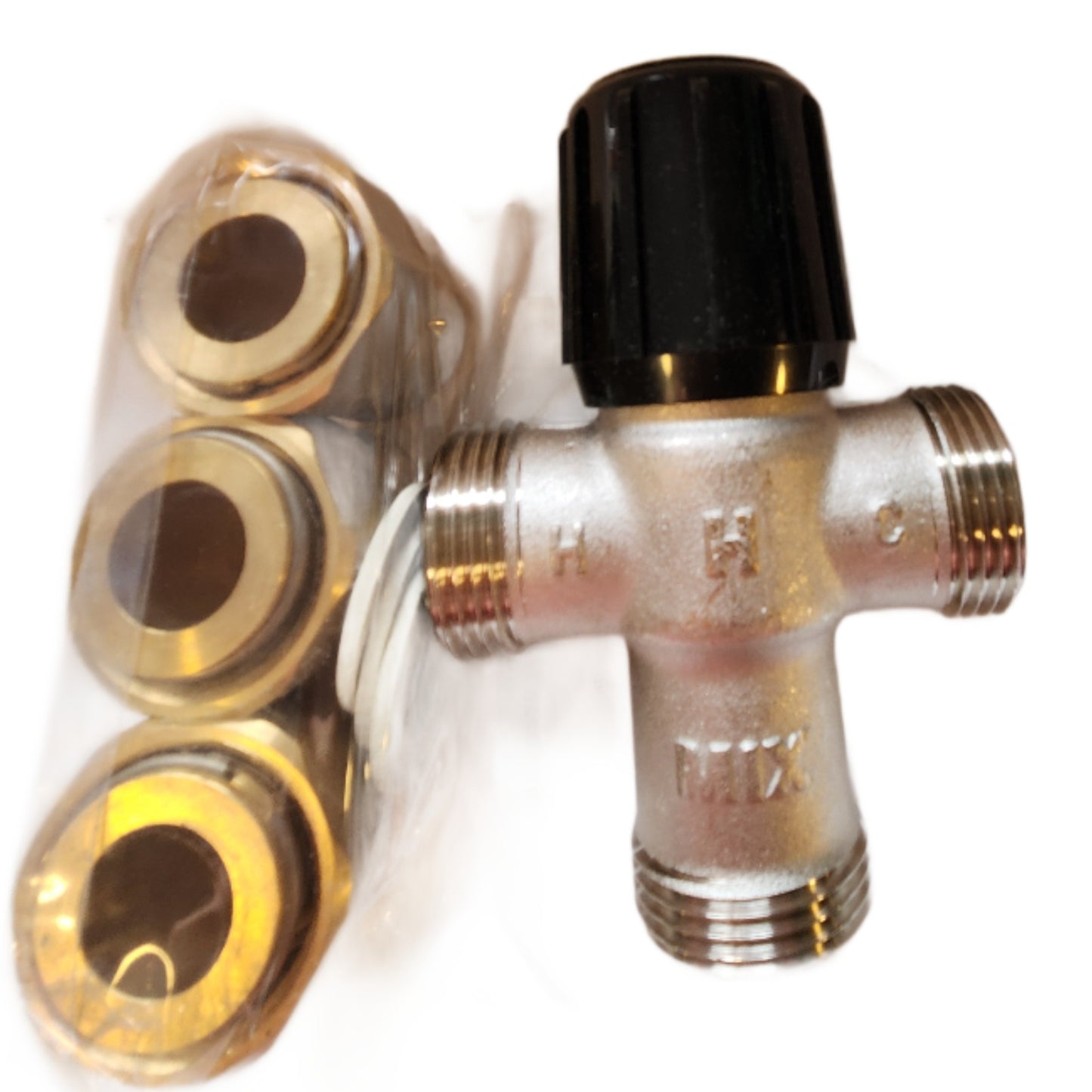

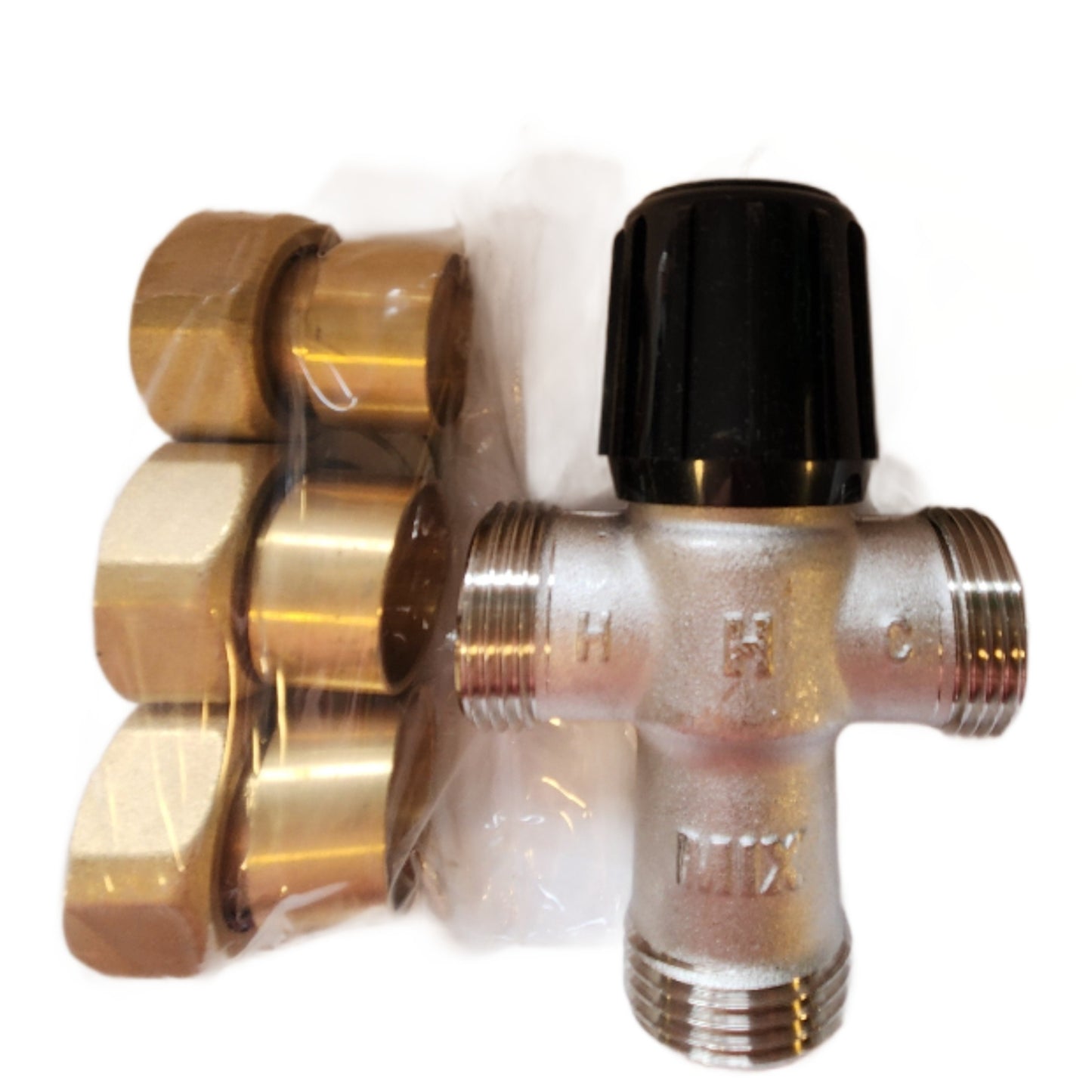

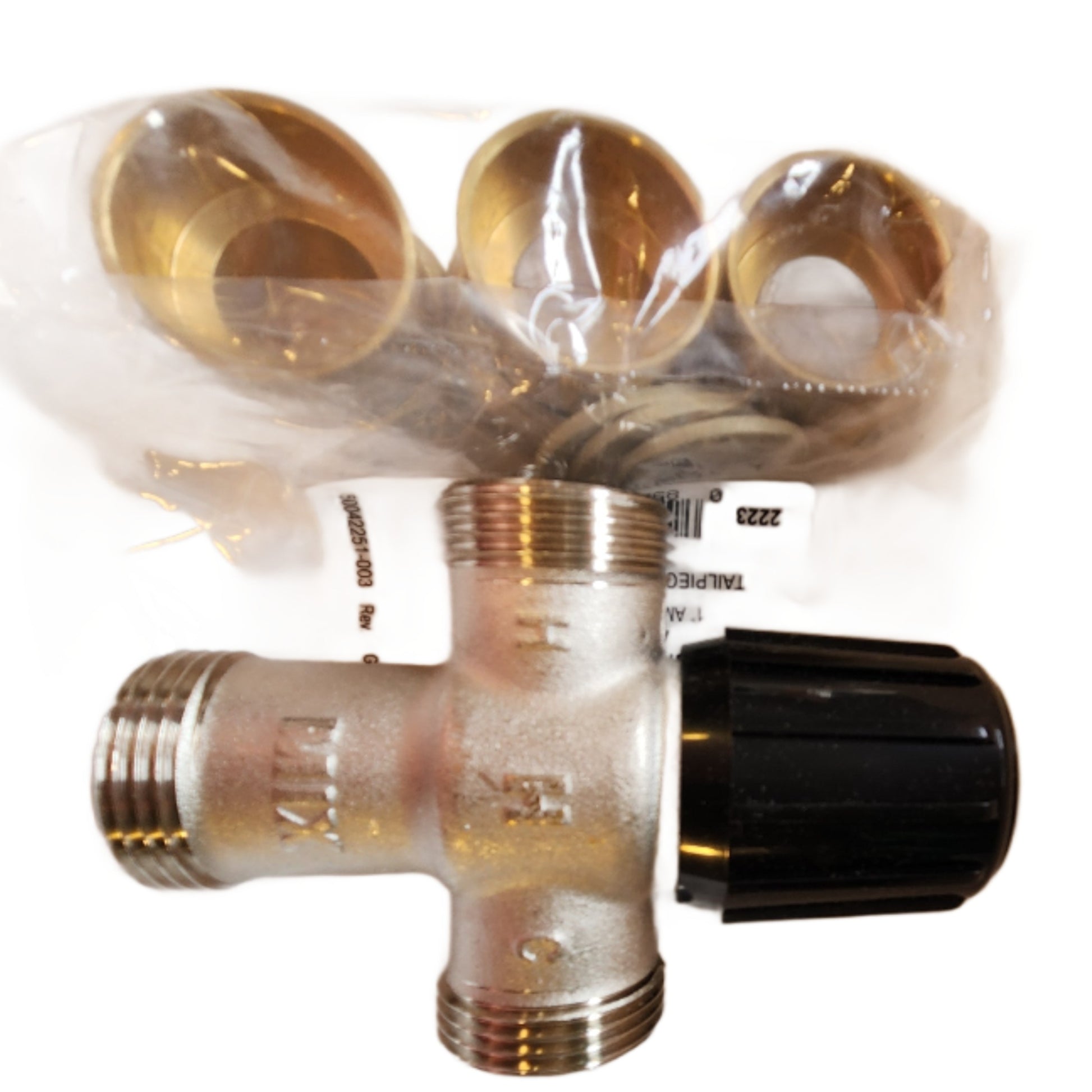

1" Sweat Mixing Valve for Heating ONLY

 Mixing Valve With 1" Sweat Ports

Features:

HEATING ONLY! (Not intended for potable water usage

Teflon coated spool and body to prevent mineral buildup and extended valve life

 Lockable Handwheel

Nickel plated brass/bronze construction, EPDM O-rings

Constant Water Temperature under different operation conditions

Proportional valve

Straight thru design (hot and cold at same level)

Designed for easy maintenance nd element replacement

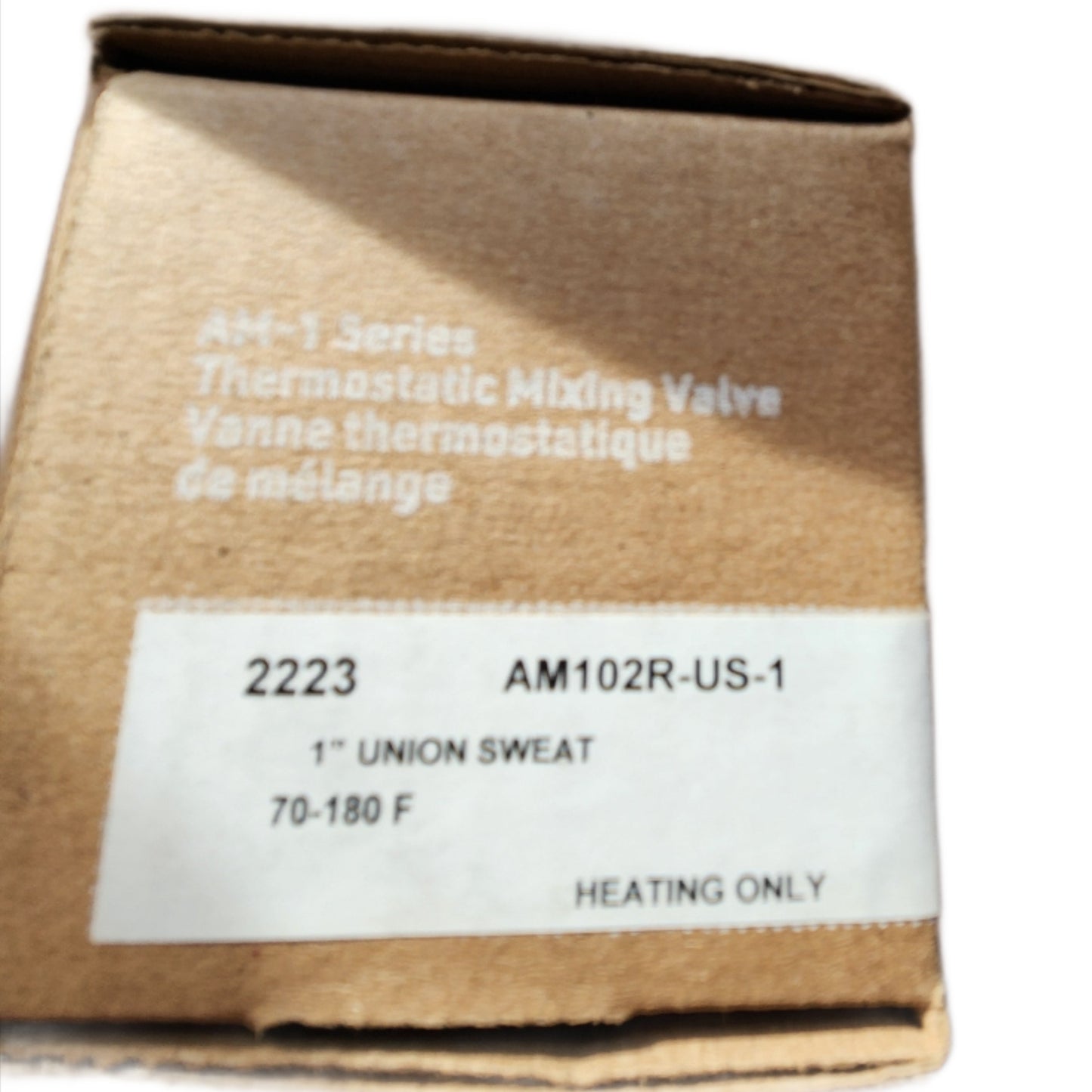

Union Sweat

Product Specifications:

Maximum Hot Water Inlet Temp: 212 degrees

Cold inlet: 39 -80 degrees F

Hot inlet: 120 - 212 degrees F

Mixed outlet: 70- 180 degrees F

Maximum pressure rating: 150 psi

Minimum required Temp Diff: between hot and mix : 3 degrees F

Minimum Flow:  0.5 GPM

Temp Gauge Adapter: Lead-free brass, EPDM o-ring
