10"x20" Brazed 50 Plate Heat Exchanger-1 1/2" MPT
THESE ARE A SPECIAL ORDER IN APPOXIMATELY 4-6 MONTHS. IF NEED SOONER, PLEASE INQUIRE.
This heat exchanger is a 10"x20" Brazed 50 Plate Heat Exchanger-1 1/2" MPT made of stainless steel and copper. It is commonly used to transfer heat from outdoor wood stoves to indoor pressurized boiler systems while maintaining separate fluids for optimal heat transfer. We provide accurate heat transfer outputs using real flow rates. Performance data for any brazed plate heat exchanger may vary depending on temperatures, flow rates, and other factors.
This product requires a special order and has a lead time of 4 months. If a quicker delivery is required, it can be expedited for an additional cost of $500.00.
PRODUCT DATA:
- Material: 316L Stainless Steel plates with 99.9% copper brazing
- Type: Liquid to Liquid
- Connections: 2" MPT Ports
- Design Pressure: 435 psi
- Test Pressure: 652 psi
- Design Temperature: -256F - 437F
- Approvals: UL Listed

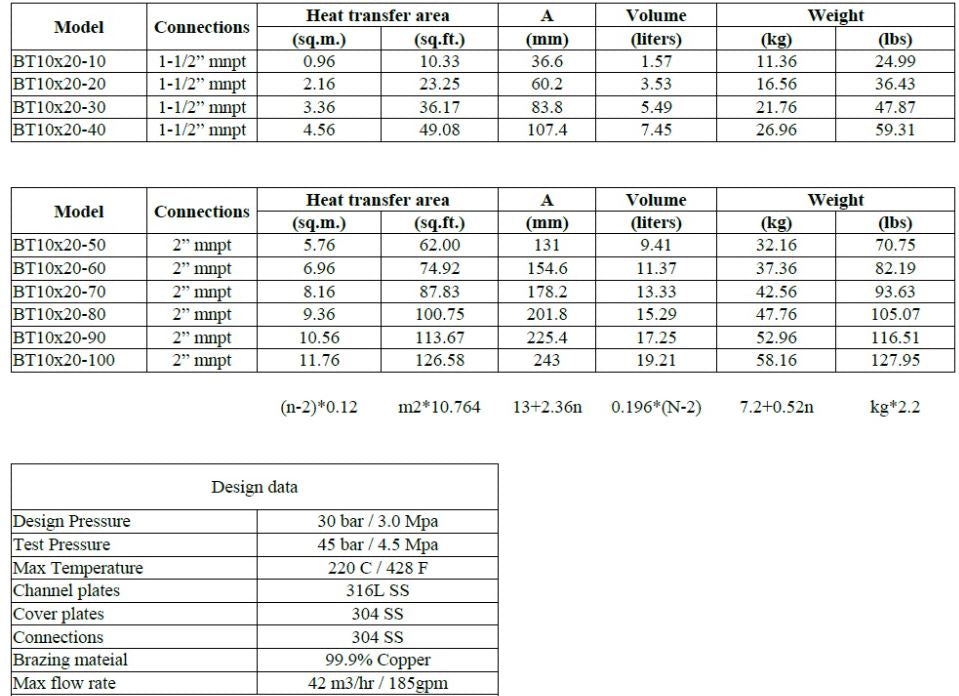

- Heat transfer area in sq.m. = (N-2) x 0.12 => 5.76 sq.m. or 62 sq.ft.
Featuring wide port spacing for convenient installation (6-3/4" C-C), and four front cover mounting studs for ease of use. Available in 10-100 plates with 1-1/2" MPT or 2" MPT connections (2" for 110 plates or more). Rated for high temperature and pressure applications, with a maximum temperature of 437F and pressure of 435 psi.
How this plate exchanger works:
The unique CHEVRON pattern and turbulent fluid flow in each channel achieve a considerably high heat transfer coefficient, reducing deposits inside the unit. This specially designed feature has been tested for optimal performance.
